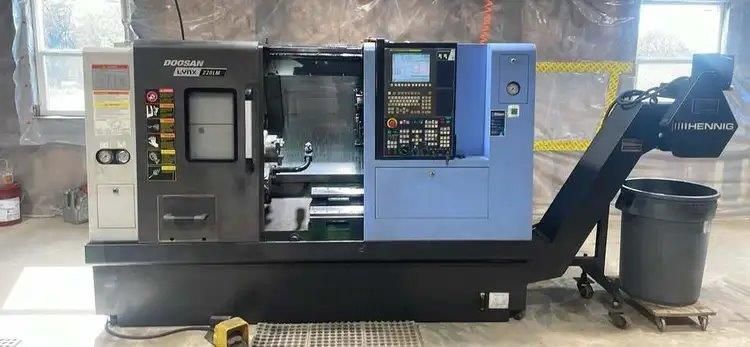

Doosan Fanuc Series-i CNC 6000 rpm LYNX 220LMA 3 Axis

X-axis travel: 6.9 in
Z-axis travel: 21.7 in
C-axis spindle rotation
Control: Fanuc Series-i CNC
Live milling capability
Live drilling capability
High pressure coolant pump
Coolant system
Spindle speed: 0–6000 rpm
Spindle motor: 20 hp
Spindle bore: 2.4 in
Spindle nose: A2-5
Rotary tool speed: 6000 rpm
Rotary motor: 5 hp
Swing: 23.2 in
Maximum turning diameter: 9.84 in
Distance between centers: 24 in
Turret positions: 24
Hydraulic chuck: 6.5 in 3-jaw
Chuck through hole: 2.01 in
Tailstock quill diameter: 2.6 in
Tailstock quill travel: 3.14 in
Tailstock taper: MT4
Parts catcher
Chip conveyor
Tool presetter
KEM oil skimmer
