Doosan Fanuc Series I CNC control 2000 RPM Puma 4100MB 3 Axis

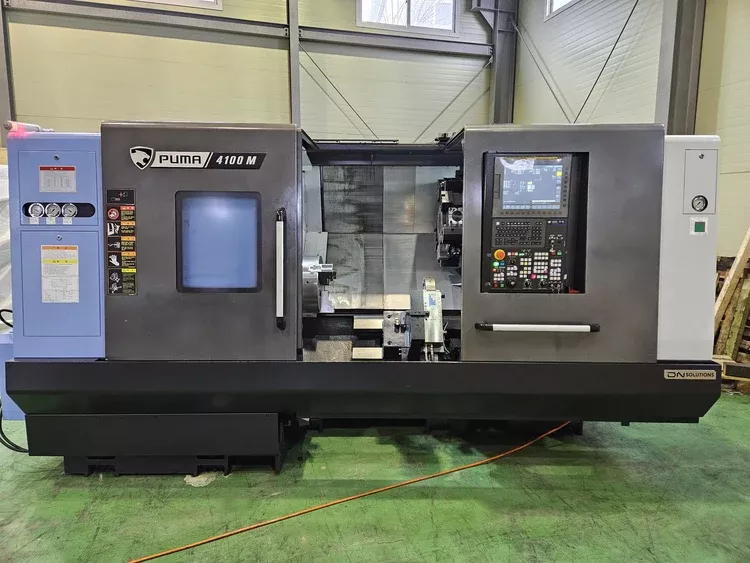

Doosan Puma 4100MB
2023

Type CNC lathe, 2–3 axis
Swing over bed 31.1"
Maximum turning diameter 22"
Machining length 38.5"
Distance between centers 44.7"
Chuck size 15"
Spindle nose A2-11
Spindle bore diameter 5.2"
Spindle bar capacity 4.6"
Spindle speed 2000 RPM
Spindle horsepower 50 HP
Gear ranges 2
X-axis travel 14.3"
Z-axis travel 43.5"
C-axis resolution 0.001°
Rapid traverse rate X-axis 630 IPM
Rapid traverse rate Z-axis 787 IPM
Turret configuration 12 stations
Rotary tool spindle speed 4000 RPM
Rotary tool horsepower 14.8 HP
Tailstock quill diameter 4.7"
Tailstock taper MT6
Tailstock quill travel 4.7"
Tailstock travel 39.4"
Programmable tailstock Yes
Machine weight 25,352 lbs
Fanuc Series I CNC control
Doosan EZ Guide I conversational programming
Tool presetter
Automatic tool setter
Hydraulic steady rest SMW SLU-4-ZS (9.68" capacity)
Programmable tailstock
C-axis spindle indexing 0.001°
Rotary tools 4000 RPM
2 I.D. rotary heads
2 O.D. rotary heads
Spindle chiller
Custom macro
Chip conveyor
