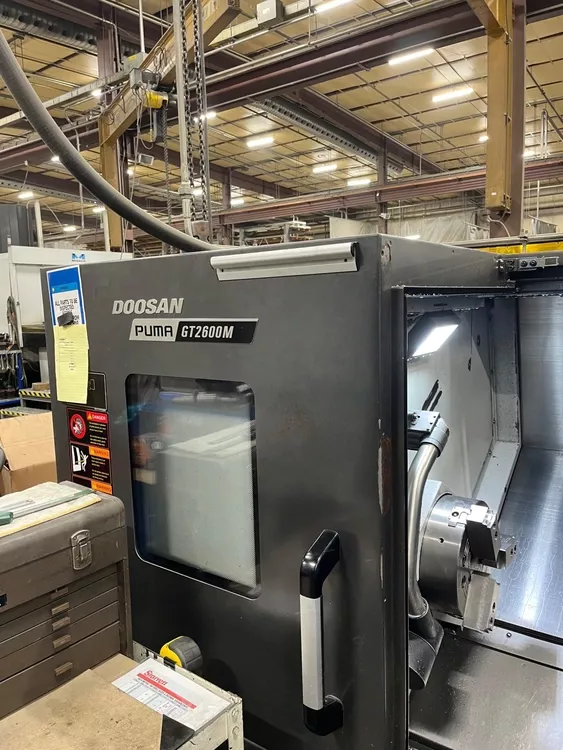

Doosan Fanuc Series I CNC Control 3,500 RPM GT2600M 4 Axis

DOOSAN GT2600M
Year: 2017

Swing Over Bed: 24.8″
Machining Length: 25.9″
Distance Between Centers: 27″
Distance Between Spindles: 0″
Chuck Size 1: 10″
Spindle Nose 1: A2-8
Spindle Bar Capacity 1: 3.18″
Turning Diameter / Shaft Diameter: 16.1″
Spindle Speeds 1: 3,500 RPM
Spindle Horsepower 1: 30 HP
Spindle Bore Diameter 1: 3.6″
X-Axis Travel: 10.4″
Z-Axis Travel: 26.8″
C-Axis Travel 1: 0°
W-Axis Travel Sub Spindle: 0
Rapid Traverse Rate - X1: 945 in/min
Rapid Traverse Rate - Z1: 1,181 in/min
Rapid Traverse Rate - C: 220
Spindle Torque: 459
Gear Ranges: 0
Turret Configuration 1: 12
Turret Rotary Tool Spindle Speed 1: 5,000 RPM
Turret Rotary Tool Horse Power 1: 7.4 HP
Tailstock Quill Diameter: 3.9″
Tailstock Taper: MT 5
Tailstock Quill Travel: 3.9″
Programmable Tailstock: YES
Tailstock Travel: 26.8″
Bar Capacity: 3.2″
Tailstock: YES
Sub Spindle: NO
Control: CNC (Fanuc Series I)
Weight: N/A

Equipped With (subject to buyer verification):
Fanuc Series I CNC Control
Tool Presetter
Chip Conveyor
10″ 3-Jaw Hydraulic Chuck
Hydraulic Chuck Clamp Confirmation
Signal Tower
Programmable Body and Quill Tailstock
USB Port & Ethernet Port for DNC Operation
