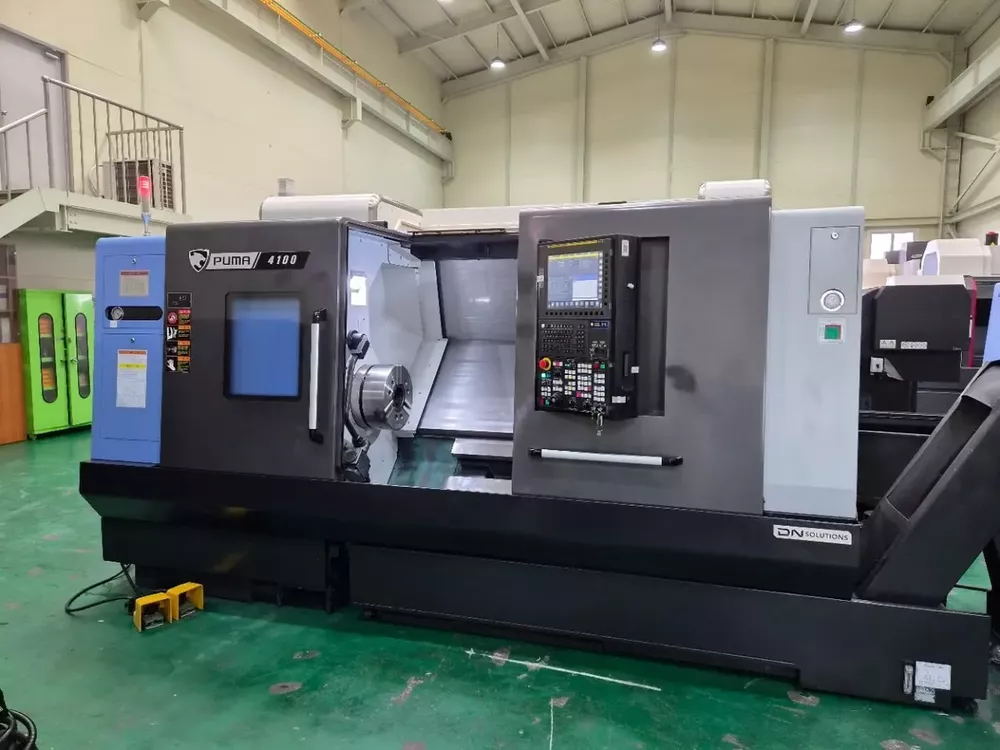

Doosan FANUC Series i Plus Color Control 2,000 RPM DN SOLUTIONS PUMA 4100B 2 Axis

X-Axis Travel: 13.9 in
Z-Axis Travel: 43.5 in

CNC Control: FANUC Series i Plus Color Control
Programming System: DN Solutions EZ Guide i Conversational
Tool Monitoring: DN Solutions Tool Load Monitoring
Ethernet Function: Embedded Ethernet
USB Port: Yes
Custom Macro: Yes

Chuck Size: 15 in
Spindle Nose: A2-11
Spindle Bore: 5.2 in
Bar Capacity: 4.6 in
Swing Over Bed: 31.1 in
Turning Diameter: 22 in
Machining Length: 41.1 in
Distance Between Centers: 43.5 in

Spindle Speed: 2,000 RPM
Spindle Power: 50 hp
Gear Ranges: 2

Turret Stations: 10
Tailstock: Yes
Tailstock Quill Diameter: 4.7 in
Tailstock Taper: MT6
Tailstock Quill Travel: 4.7 in
Programmable Tailstock: Yes
Tailstock Travel: 39.4 in

Chip Conveyor: Yes
Coolant System: Yes
Spindle Chiller: Yes
Tool Setter: Yes

Machine Type: CNC Universal Turning Center
Axis Count: 2
Live Tooling: No
Sub Spindle: No
Machine Weight: Not specified
