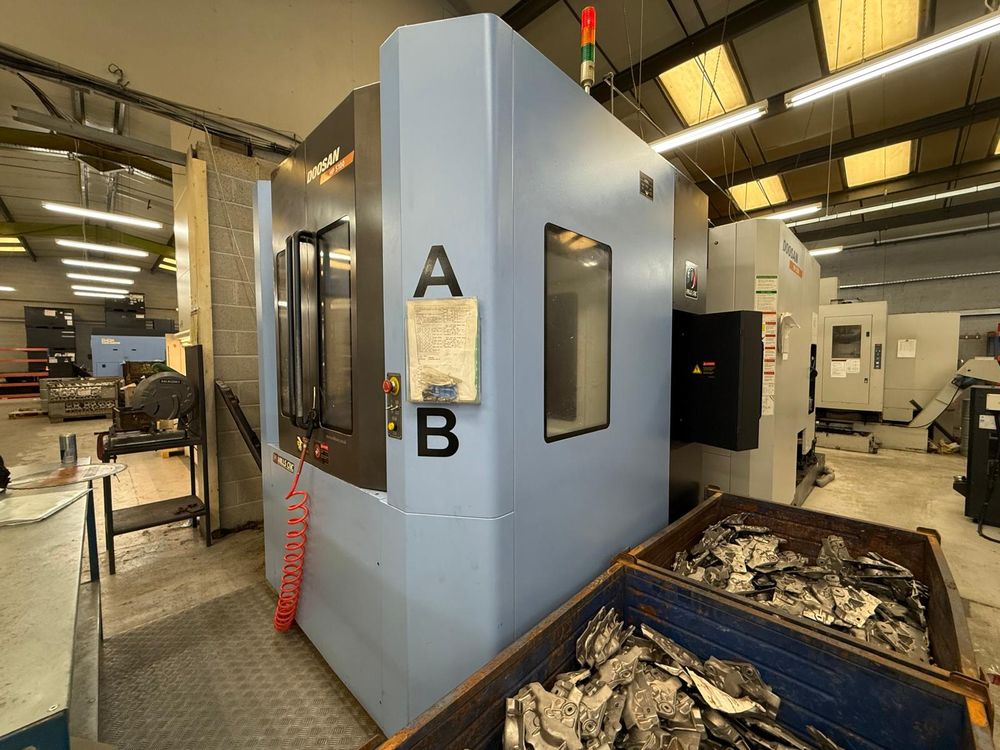

Doosan HP-5100 4 Axis

DOOSAN HP-5100
2009

B axis 0.001°
Control Fanuc 31i
Coolant system
Interlocked guards
Low voltage light
Manuals
Swarf conveyor
Through spindle coolant
Tool setter
Twin pallet system
Number of pallets 2
Pallet size 500 x 500 mm
Pallet change time 7.5 seconds
Spindle speed 14,000 rpm
Spindle motor power 22.4 kW
Spindle torque 93 Nm
Spindle nose to table center 150 ~ 900 mm
Spindle center to table top 50 ~ 750 mm
Tool change capacity 120 stations
Tool change time (chip to chip) 4 seconds
Tool size BT40
Maximum tool length 400 mm
Maximum tool length with adjacent tools 75 mm (140 mm without)
Maximum tool weight 10 kg
Maximum workpiece size 800 x 800 x 929 mm
Maximum workpiece weight 500 kg
Rapid feedrates 60 m/min
Traverses X 850 mm
Traverses Y 700 mm
Traverses Z 750 mm
Dimensions 4928 x 2795 x 3024 mm
Weight 15,031 kg
