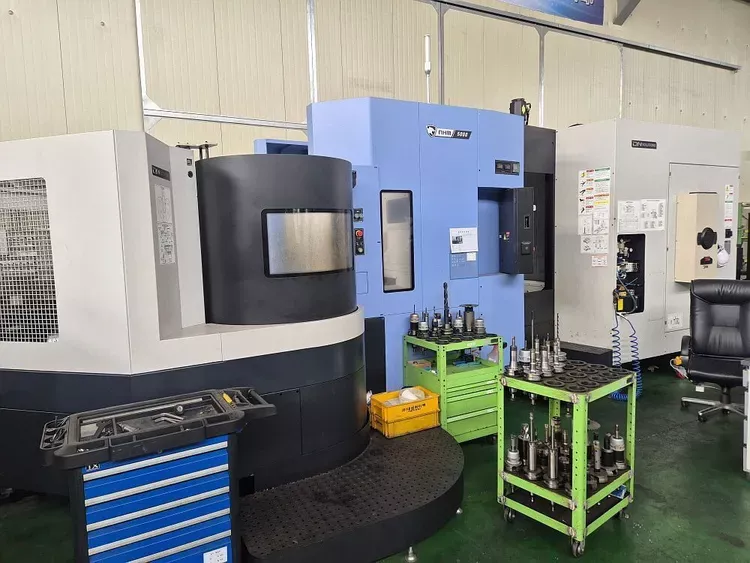

Doosan NHM 5000 4 Axis

X-Axis Travel: 31.5 mm
Y-Axis Travel: 27.6 mm
Z-Axis Travel: 33.5 mm
B-Axis Travel: .001
Control: FANUC 31 IB CNC Color Control
Number of Pallets: 6
Pallet Size L: 19.7 mm
Pallet Size W: 19.5 mm
Pallet Weight Capacity: 1,763 lb
Pallet Surface to Spindle Center: 2.9" - 30.5"
Pallet Center to Spindle Gage Line: 3.9" - 37.4"
Spindle Speed: 6,000 RPM
Spindle Taper: 50 Big PLUS
Number of Ranges: 2
Main Motor: 35 kW
Automatic Tool Changer: 150
Tool Diameter: 5.1" - 12.6"
Tool Length: 20.8"
Tool Weight: 66 lb
Machine Weight: 40,787 lb
High Torque Geared Head Spindle
Chip Conveyor
Remote Manual Pulse Generator
Renishaw Part Probe
Tool Length Measurement
Scales X, Y, Z Axis
1000 PSI Thru Spindle Coolant
Big Plus CAT 50 Spindle
Absolute Pulse Coder
Spindle Air Curtain
200 Pairs Additional Tool Offsets
0.001 Degree Minimum Programming
Part Program Storage 640M
Embedded Ethernet Option
AICC II 200 Blocks
Work Coordinate Systems
Helical Interpolation
Pitch Error Compensation
Inch/Metric Selection
Custom Macro B
Coordinate System Rotation
Extra Jaws for Chic Fixturing
Factory 6 Pallet Changer
