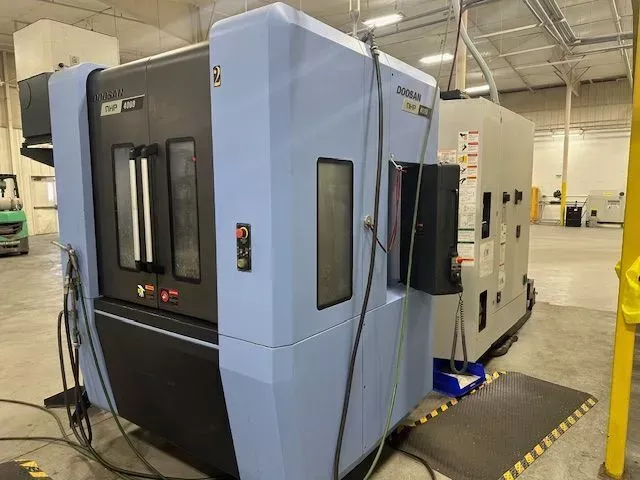

Doosan NHP 4000 4 Axis

X axis travel: 22"
Y axis travel: 25.2"
Z axis travel: 26"
Rapid traverse rate X axis: 2362 ipm
Rapid traverse rate Y axis: 2362 ipm
Rapid traverse rate Z axis: 2362 ipm

B axis: 0.001° NC rotary

Control: FANUC 31i-B CNC
Conversational programming
Graphic function
AI contour control II
8MB program storage
High-speed CPU
Nano smoothing
Helical interpolation
Thread cutting / synchro feed
Embedded Ethernet
Auto tool measurement Renishaw
Renishaw OMP600 part probe
4 axis NC rotary table
Pallet clamp confirmation air sensing
200 work offsets
Tool load monitoring
Handheld MPG
Chip conveyor
Coolant through spindle 300 PSI
Chip blaster system 1000 PSI
Spindle chiller
Shower coolant
Tilted work plane
Mist collector system

Pallet size: 15.7" x 15.7"
Number of pallets: 2
Pallet surface to spindle center: 3.1" – 29.1"
Pallet center to spindle gage line: 3.1" – 28.3"
Max workpiece dimensions: 24.8" x 35.54"

Spindle speed: 15000 rpm
Spindle motor: 40 hp
Spindle taper: CT40 Big Plus

Tool changer capacity: 60
Tool diameter: 3.0" / 6.7"
Tool length: 17.7"
Tool weight: 26.5 lbs
Tool change time: 0.9 sec

Machine weight: 21384 lbs
