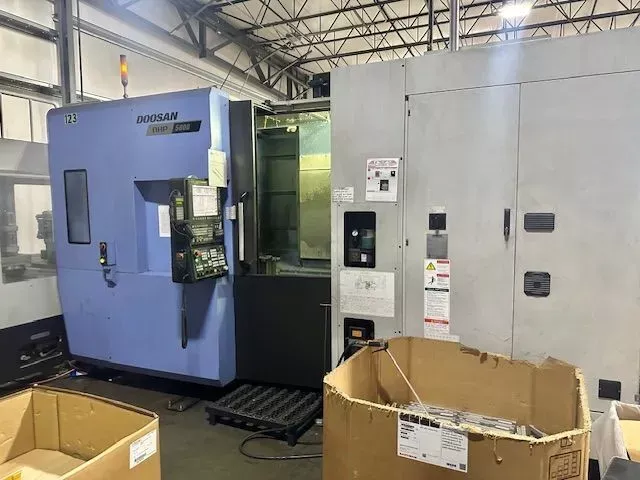

Doosan NHP-5000 4 Axis

X-axis travel: 28.7 in
Y-axis travel: 28.7 in
Z-axis travel: 34.6 in

Rapid traverse X-axis: 2,364 ipm
Rapid traverse Y-axis: 2,364 ipm
Rapid traverse Z-axis: 2,364 ipm
B-axis indexing resolution: 0.001°
Control: FANUC 31i-B CNC color conversational control
Pallet size: 19.7 in x 19.7 in
Number of pallets: 12
Pallet weight capacity: 1,102 lb
Workpiece capacity: 31.5 in x 39.4 in
Spindle speed: 15,000 rpm
Spindle taper: 40
Spindle motor power: 49.6 hp
Number of spindle ranges: 2
Cutting feed rate: 1,181 in/min
Automatic tool changer capacity: 60 tools
Maximum tool diameter: 3.0 in
Maximum tool diameter with adjacent tools empty: 6.7 in
Maximum tool length: 21.7 in
Maximum tool weight: 26.5 lb
Tool change time: 2 sec
Machine weight: 25,352 lb

Features / options / equipment
4-axis horizontal machining center
12-station linear pallet system
Pallet loading station with controller
Thru-spindle coolant system 1000 psi
Tool length probe
Part probe
Big Plus spindle
Matrix tool changer
Manual Guide i conversational programming
High-capacity part program memory
Nano smoothing
Tool retract and recovery function
Air limit pallet clamping system
Advanced tool and pallet retract function
Handheld remote MPG
Chip conveyor
Flood coolant system
Flushing coolant system
Renishaw part probe
Automatic tool measurement probe
Automatic tool damage detection
Rigid tapping
Custom macro B
Embedded Ethernet function
USB port
Video monitoring system
