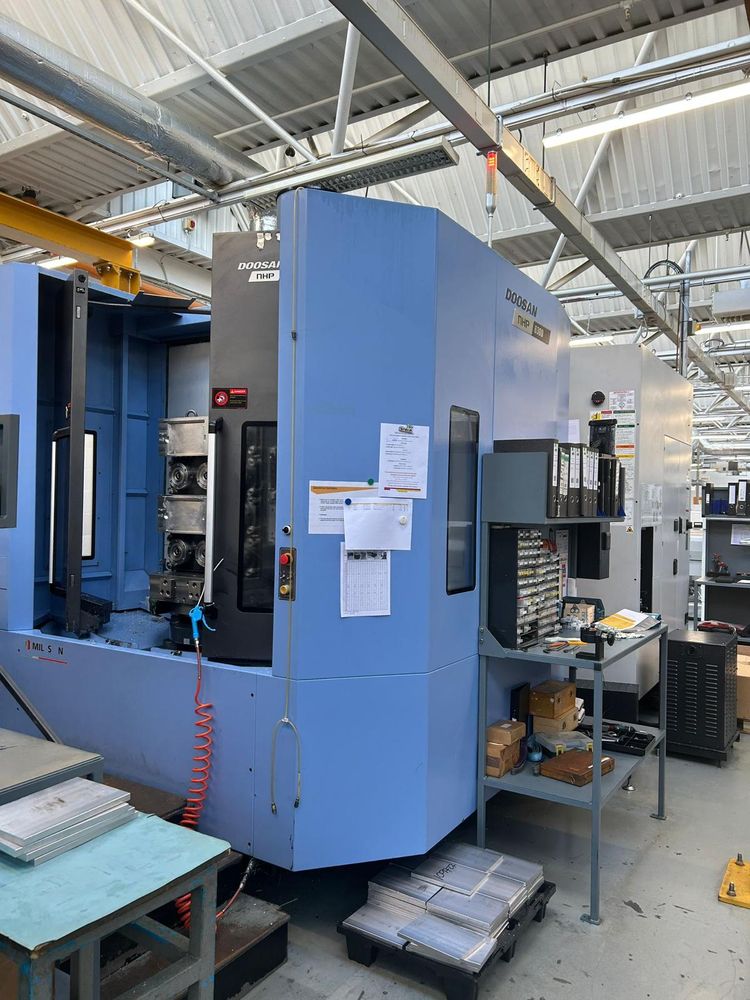

Doosan NHP 6300 4 Axis

Doosan NHP 6300
2018

B axis, Coolant
Interlocked guards
Low Volt Light
Manuals, Swarf Conveyor
Through Spindle Coolant
Twin Pallet

B axis Unit 0.001 degree
Control FANUC Series 31i – Model B
Distance Between Table Centre to Spindle Nose100 - 1100mm
Distance Between Table Top to Spindle Centre75 - 975mm
Machine Dimensions6250 x 3930 x 3495mm
Machine Weight18,000kg
Maximum Tool Diameter125mm
Maximum Tool Diameter with Empty Adjacent Pockets320mm
Maximum Tool Length630mm
Maximum Tool Weight25kg
Maximum workpiece weight1500kg
Pallet Change Time12 seconds
Pallet Size630 x 630mm
Rapid Feedrates60m/minute
Spindle Motor Power45/25kW
Spindle Speed10,000rpm
Spindle TaperBT50
Tool Change Capacity60 Station
Tool Change Time (Chip to Chip)5.4 seconds
Traverses XYZ1050 x 900 x 1000mm
