Doosan NHP 6300 4 Axis

DOOSAN NHP 6300
2018

Pallet size: 24.8" x 24.8"
Number of pallets: 2
Max pallet load: 3,307 lbs
Pallet surface to spindle center: 3.0"–38.4"
Pallet center to spindle gauge line: 3.9"–37.4"
Max workpiece dimensions: 41.3" x 53.1" (H)
X travel: 41.3"
Y travel: 35.4"
Z travel: 39.4"
B-axis indexing: .001°
Rapid traverse (X/Y/Z): 2364 ipm
Rapid traverse (B): 0
Cutting feed rate: 1181 ipm
Spindle speed (max): 15,000 rpm
Spindle taper: 50
Main motor: 45 hp
ATC capacity: 60 tools
Tool diameter: 4.9", 12.6"
Tool length: 24.8"
Max tool weight: 66.1 lbs
Tool change time: 2 sec
Machine weight: 39,700 lbs

FANUC 31i-B CNC control
Through-spindle coolant
Chip conveyor
Glass scales X, Y, Z
Flood and flushing coolant
PCMCIA card slot
USB port

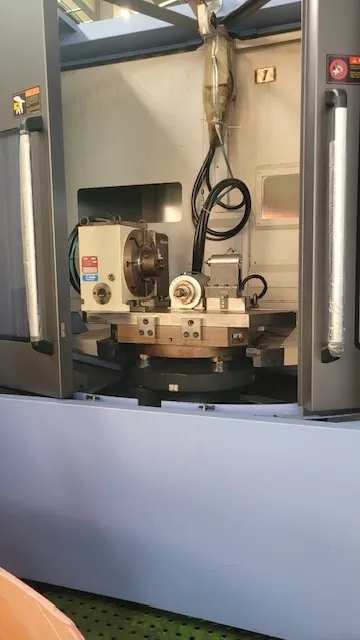

320mm NC rotary table
Part probe
Tool length measurement touch probe
Rigid tapping
Custom Macro B
Embedded Ethernet function
