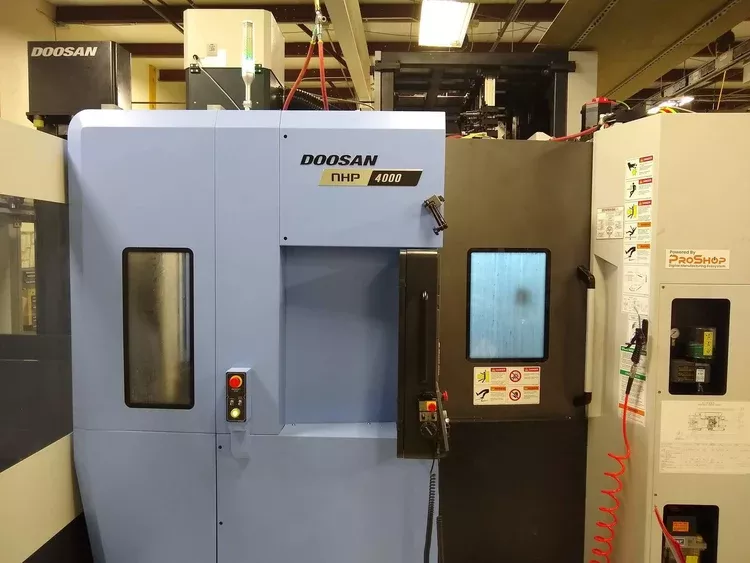

Doosan NHP 4000 6 Axis

DOOSAN NHP 4000
2020

Number of pallets: 12
Table size: 15.75" x 15.75"
Max table load: 880 lbs
Spindle speed (max): 15,000 rpm
Spindle speed (min): 0 rpm
Spindle taper: 40 CT BIG PLUS
Main motor: 49.2 hp
X travel: 22"
Y travel: 25.1"
Z travel: 25.9"
A-axis travel: 0
B-axis indexing: .001°
C-axis travel: 0
Rapid traverse (X/Y/Z): 2362 ipm
Cutting feed rate: 2362 ipm
ATC capacity: 275 tools
Tool diameter: 3", 6.69"
Tool length: 17.71"
Max tool weight: 26.45 lbs
Machine weight: 33,040 lbs
Spindle nose to pallet center: 3.15"–29.13"
Spindle center to table top: 3.15"–28.34"

FANUC 31i-B CNC color control
12-pallet linear pallet system (LPS)
275-tool matrix automatic tool changer
Renishaw laser tool setter
BK Micro tool breakage detection probe
Cell controller with 1 load/unload station
Chip conveyor
Coolant through spindle 300 PSI
12 tombstones included
Renishaw RMP-60 spindle probe
Tilted work plane 54.1
2 spindle supports (different lengths)
.001° 4-axis N/C rotary table
