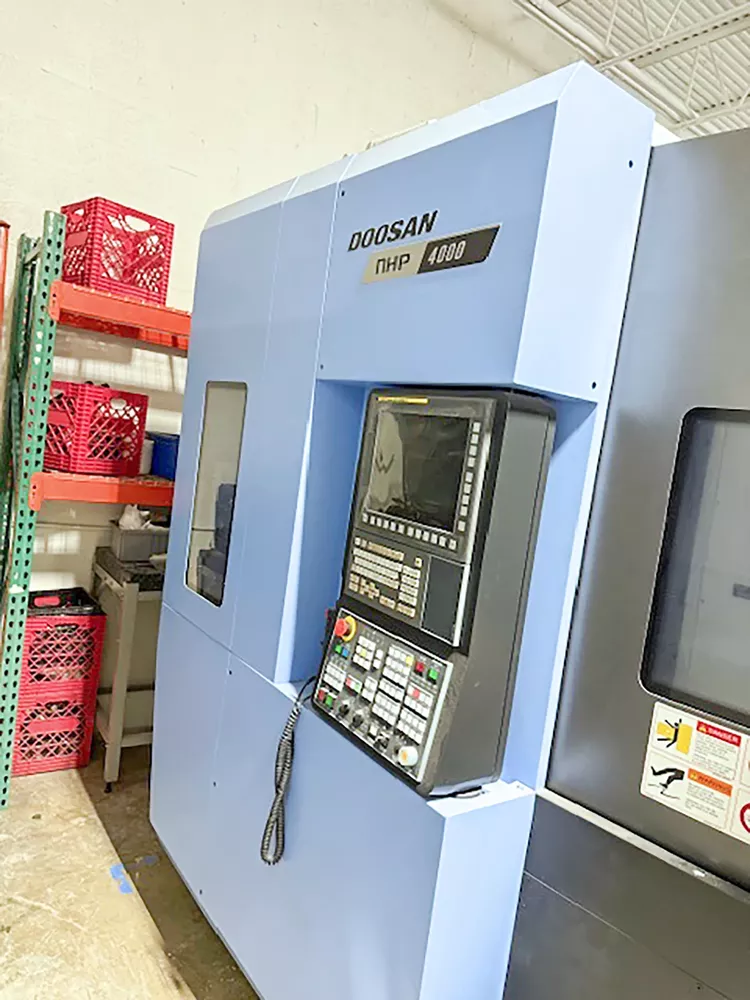

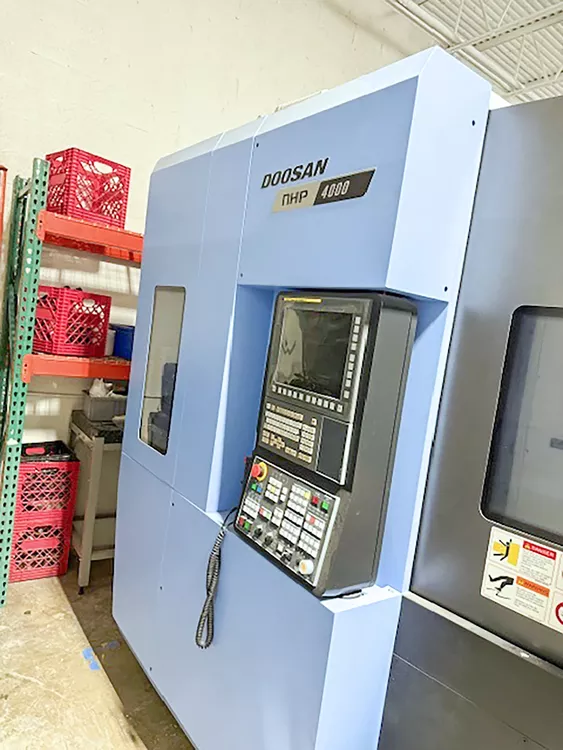

Doosan NHP4000 4 Axis

Doosan NHP4000
YEAR: 2021

CONTROL: Fanuc 31iB
Spindle Taper: 40CT
Travel distance X-axis: 560 mm (22 in)
Travel Distance Y-axis: 640 mm (25.2 in)
Travel distance Z-axis: 660 mm (26 in)
Rapid Traverse X-Axis: 60 m/min (2362.2 in/min)
Rapid Traverse Y-Axis: 60 m/min (2362.2 in/min)
Rapid Traverse Z-Axis: 60 m/min (2362.2 in/min)
Table Size: 400 x 400 mm (15.7 x 15.7 in)
MAX PART SIZE: 630 x 900 mm (24.8 x 35.4 in)
Max Load: 400 kg (881.8 lbs)
Speed: 20000 rpm
Power: 30 kW (40.2 Hp)
Torque: 230 Nm (169.7 ft-lbs)
Max Length: 450 mm (17.7 in)
Changer Capacity: 60 (Opt. 40 80 120 171 275)
Change Time: 0.9 Seconds
Max Diameter: 75/170 mm (2.9/6.69 in)

MACHINE EQUIPPED WITH
Unused Machine! Zero Hours Cutting!
Fanuc 31iB Control
Coolant Thru Spindle
Programmable Coolant
360000 Full 4th Axis
20000 RPM Spindle
MP High Pressure Coolant
Renishaw RMP 600 Strain Gauge Probe
BK Mikro Broken Tool Detection
60 Count ATC
Chip Conveyor
