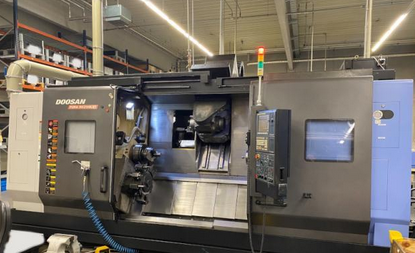

Doosan PUMA MX 2100 LST 5 Axis

Swing over bed: 750 mm
Swing over cross slide: 600 mm
Collision-free turning diameter: 210 mm
Maximum turning diameter main spindle: 540 mm
Maximum turning length: 1520 mm

Y-axis
B-axis swivel range: 240° (+120°)
B-axis positioning accuracy: 0.001°

CNC control FANUC 31i-TA
Manual Guide i
Tool measuring arm
Automatic workpiece measurement
Internal coolant supply through sub-spindle
Chuck cleaning
Air/water through turret
Compact filtration system

Main spindle chuck diameter: 210 mm
Spindle bore: 76 mm
Chuck pass-through: 66 mm
Main spindle speed: up to 5,000 rpm
Maximum torque main spindle: 318 Nm

Milling spindle speed: up to 12,000 rpm
Milling spindle torque: 81 Nm
Milling spindle motor power: 18.5 kW

Tool magazine capacity: 40 tools
Tool interface: CAPTO C6

Lower turret tool positions: 12
Driven tool motor power: 5.5 kW
Driven tool speed: 5,000 rpm
Drill holder diameter: 40 mm
Tool shank size: 25 × 25 mm
Tool holder type: BMT 55P

Chip conveyor
Parts removal conveyor
