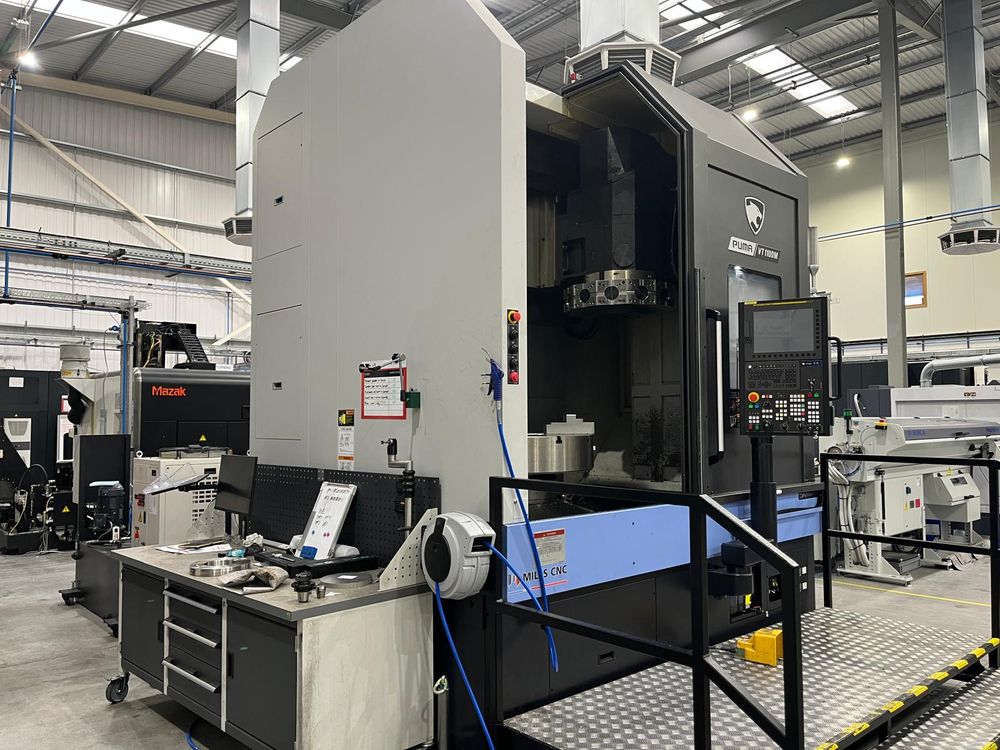

Doosan VT1100M Turning Centre with Fanuc 0iTF Control. Spindle max torque 7552 Nm

Swarf conveyor MH500 type (rear exit)
Swarf bin
FSE 70 bar NOP pump upgrade
Coolant chiller
Operator working platform
Coolant wash gun
Renishaw OLP40 inspection probe
Filtermist FX7002F oil mist separator with F Monitor 2
HC40G Samchully closed centre chuck
Hard jaws set
Soft jaws set
Face-type toolholder (2 pcs)
Cross-type toolholder (2 pcs)
Unused live tooling (8 pcs)

Swing over bed 1270 mm
Swing over saddle 1000 mm
Maximum turning diameter 1100 mm
Maximum turning length 960 mm
Maximum workpiece weight 2200 kg
Spindle nose 702-4-NO.15
Spindle max power 65 / 55 / 45 kW
Spindle max torque 7552 Nm
Spindle speed max 850 rpm
X-axis travel 580 mm
Z-axis travel 1000 mm
C-axis travel 360°
X-axis rapid traverse 20 m/min
Z-axis rapid traverse 20 m/min
C-axis rapid traverse 14 r/min
Turret type BMT85P
Turret stations 12
OD tool size 32 mm square
Boring bar size 80 mm diameter
Rotary tool power 7.5 / 11.0 kW
Rotary tool speed 3000 rpm
Rotary tool collet size ER50 (6–32 mm)
Power requirement 98.77 kVA
Machine dimensions 2830 × 3305 × 4012 mm
Machine weight 22550 kg
