Dornier 1 layers BOPP / BOPET tenderframe plant

Number of layers 1
Overhaul/renovation in 2019 PLC and drives upgraded.
Winder Kampf Imperial year 2019,
Gobble slitter rewinder year 2020
Material BOPET
Output Max speed 535 m/min
Width (mm) 6800

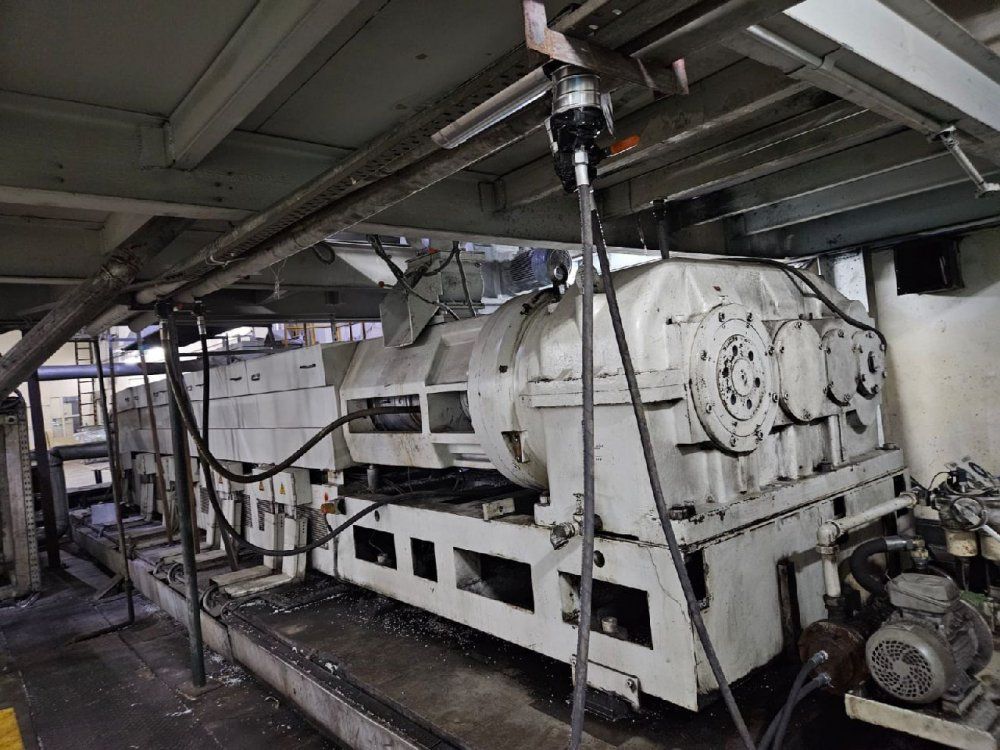

Extruder 1 Description Single screw 22E4-30D
screw diameter 225 mm, 203KW,
Max output of extruder 3900 Kg/h
Head description EDI, model Autoflex IV H75,
automatic thickness profile control via flex lip and
thermal expansion bolts.
Die width 2050mm
Thickness controll system Automatic. Gauge Honeywell
Chill roll unit without water bath
MDO description 10xPre heating rollers; 6xstretching rollers, 4xannealing rollers, Oil heated MDO
TDO description Chain typeHS-9 with roller bearings,
Oil heated, 16 sections
Corona treatment IEEC (RFG-12-1585K)-12KW
Rewinder width 7200mm
Rewinder description Kampf- Im perial S 72/14 , year 2019
Slitter Goebel Primary slitter (2020 Model), 10 couple of arms,
11 knives
Note In line coating single side Grinder, Edge Trim conveying
& regranulation system
