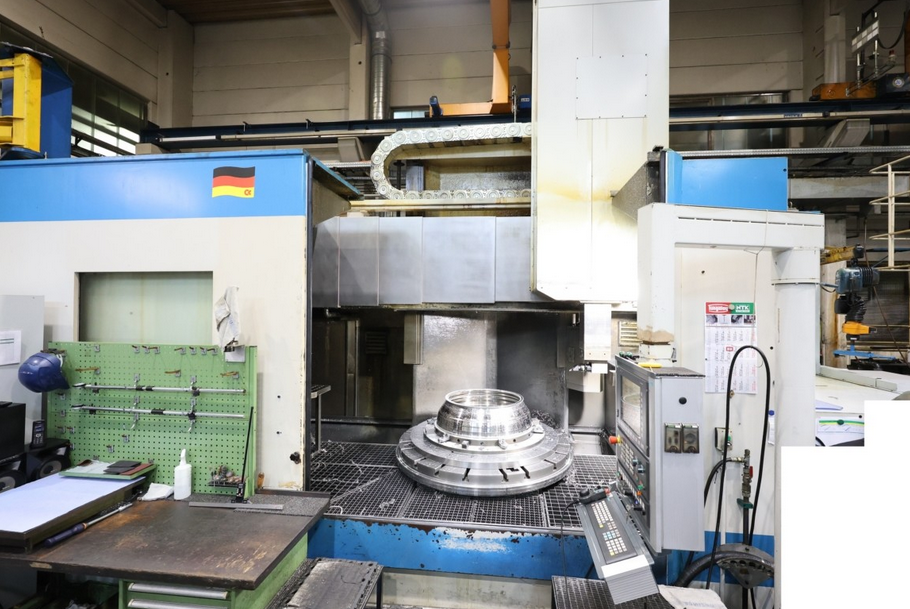

Dorries Scharmann CONTUMAT VCE 2000/160 Turning speed range: 2.8–315 rpm

refurbished 2010
Cross rail adjustment (vertical): 1200 mm
Cross rail adjustment (horizontal): ±1150 mm
Bit feeder section: 1500 mm
Minimum immersion diameter: 240 x 240 mm
Feed range (servo motors): 1–3000 mm/min
Feed range: 0.01–50 mm/rev
Crossbeam travel speed: 425 mm/min
Control: Siemens Sinumerik 840D sl
Magazine capacity: 20 positions
Magazine type: disc magazine
Max tool length: 525 mm
Coolant tank capacity: approx. 2000 L
Coolant pump flow rate: 60 L/min at 2 bar
Renishaw probe
Workpiece measurement system
Chip conveyor

Swing diameter: 2000 mm
Turning height: 1800 mm
Cutting capacity: 340 kN
Max clamping weight: 12–315 kg
Speed range step 2: 2.8–80 rpm
Weight: approx. 105 t
Machine dimensions: 10 x 5 x 6.5 m / approx. 33 m total length
Increased turning height (+600 mm)
Z-axis extended to 1500 mm
Overhauled control system (Siemens Industry Munich 2012)
Overhauled cabling, motors, measuring systems
