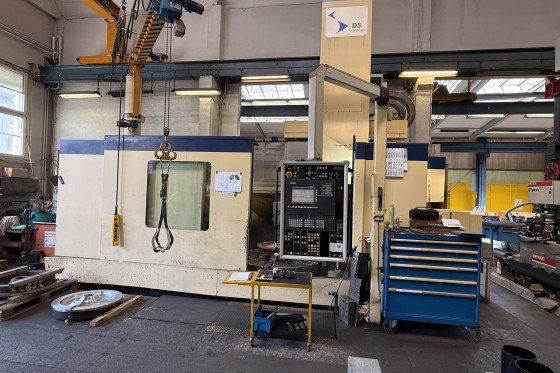

Dorries Scharmann VCE 2000 FMC Speeds range 280 RPM

Ref : 2781931-3-GO

Condition : Used

Manufacturer : Dorries Scharmann

Model : VCE 2000 FMC

Short Description : Speeds range 280 RPM

Year(s) : 1998

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X axis travel horizontal movement support 1150 mm
Maximum turning diameter 2000 mm
Maximum turning height 995 mm
Table diameter 1600 mm
Ram stroke left 995 mm
C-axis 360000° full C-axis control
ATC capacity 24 tools
Main power 60 kW
Live tool power 30 kW
Grinding spindle power 30 kW
Live tools spindle speed 3000 RPM
Grinding spindle speed 3000 RPM
Work load capacity 10000 kg
Tool holders included (max tool height 400 mm)
Chip conveyor included
Machine weight approximately 42000 kg
Machine dimensions (estimate): 10200 mm × 8200 mm × 8200 mm
