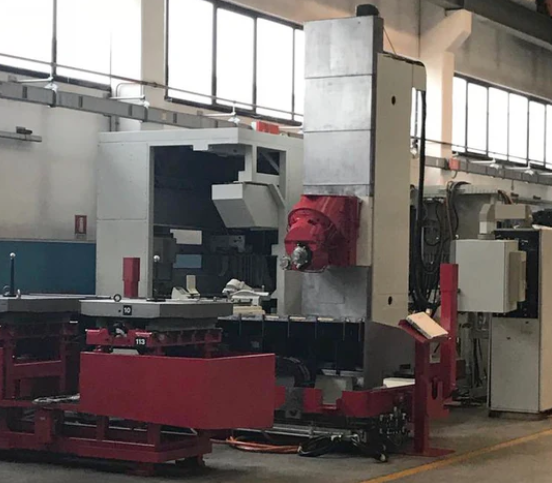

Dorries Scharmann SOLON 3 HV/DTV 4000 RPM

Ref : 2807359-3-CP

Condition : Used

Manufacturer : Dorries Scharmann

Model : SOLON 3 HV/DTV

Spindle Speed : 4000 RPM

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 1500 mm
Y-Axis Travel: 1200 mm
Z-Axis Travel: 1250 mm
B-Axis: 360 × 0.0001°
SIEMENS SINUMERIK 840 D Control
5-Axis Configuration
161-Position Tool Changer
Tool Capacity: 161
Maximum Tool Diameter: 300 mm
Maximum Tool Weight: 25 kg
HSK-A100 Spindle Taper
Spindle Speed: 10–4000 RPM
Spindle Motor: 40 kW
Table Speed: 1–500 RPM
2 Tables
Table Size: 1000 × 1000 mm
Maximum Table Load: 2000 kg
4 Pallets
Full Splash Cabin
Coolant System
Process Control Device
Chip Conveyor
Set of Toolholders
Electrical: 400 V, 3-Phase, 50 Hz
Total Power: 180 kW
Machine Dimensions: 8500 × 4800 × 4800 mm
Machine Weight: 6000 kg
