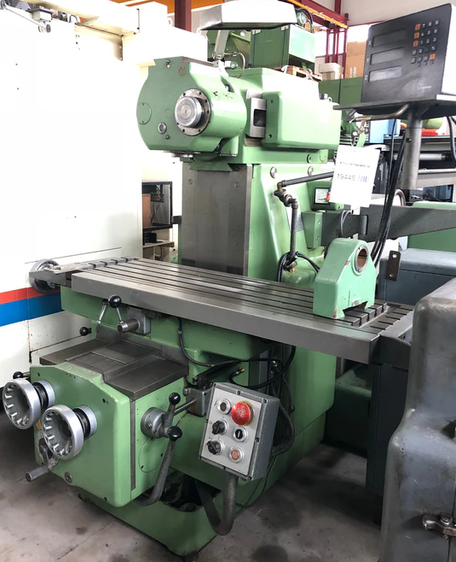

Reiden FU 150 A 2000 rpm

X-Axis Travel: 850 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 470 mm
Table Size: 1250 × 350 mm
Table Load Capacity: 400 kg
Tool Taper: ISO 40
Spindle Speed: 45–2000 rpm
Spindle Speed Steps: 12
Feed Rate (X): 18–800 mm/min
Feed Rate (Y): 18–800 mm/min
Feed Rate (Z): 7.2–320 mm/min
Rapid Traverse (X): 2.70 m/min
Rapid Traverse (Y): 2.75 m/min
Rapid Traverse (Z): 1.10 m/min
Motor Power: 10 CV
Total Power Requirement: 7 CV
Voltage: 380 V, 3 Phase, 50 Hz
Tool Holders
Machine Lamp
Machine Weight: 1950 kg
Machine Dimensions: 2000 × 1700 × 2000 mm
