Reiden BFR 24 5000 rpm

REIDEN BFR 24
Year: 2011

X-travel: 4000 mm
Y-travel: 1200 mm
Z-travel: 1500 mm
B-axis tilt: ±180°
A-axis tilt: 15° steps in 45° plane
Available A-axis angles: 15° / 30° / 45° / 60° / 75°
Spindle speed range: 20 – 5000 rpm
Main drive power: 30 / 45 kW (100% / 40% duty cycle)
Torque: 755 / 1135 Nm (100% / 40% duty cycle)
Internal coolant pressure: 80 bar
Coolant flow: 20 l/min
Coolant filtration: paper band filter
Programmable coolant pressure
Tool change orientation: vertical
Tool changer capacity: 64 tools
Tool change mechanism: double gripper arm

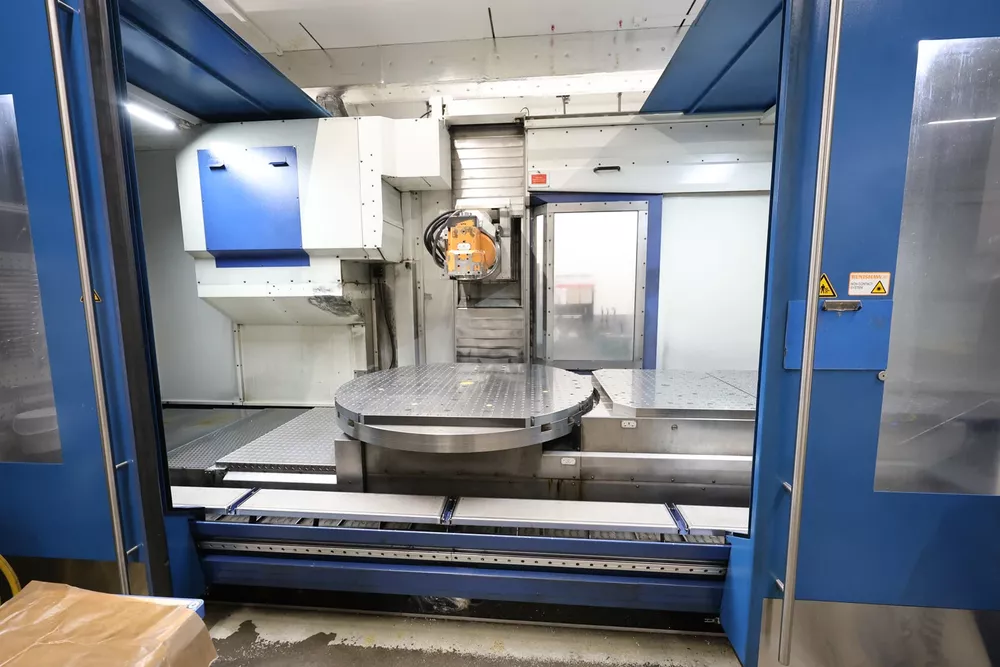

Rotary table diameter: Ø 1800 mm
Fixed table size: 1600 x 1000 mm
Rotary table accuracy: ±0.006 mm at Ø 1000 mm
Control: Siemens 840 DSL J
Tool holder: HSK 100
Measuring probe
Rear operating panel
Front doors open/close via control panel button
Scratch-resistant viewing windows
Air blast through spindle center
Chip conveyor along front of machine bed
Flushing gun
