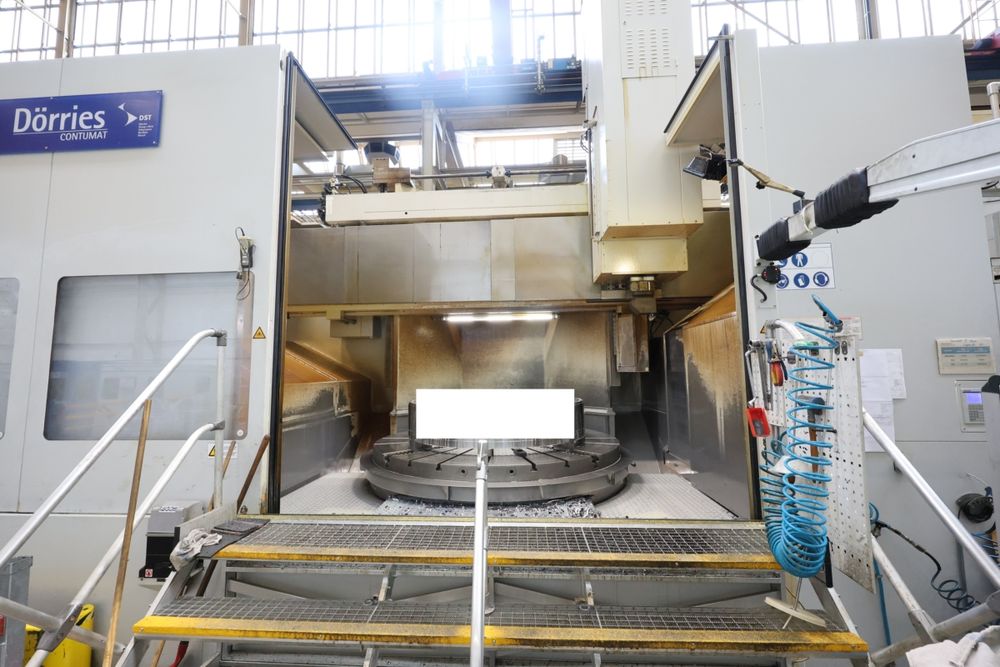

Dorries Scharmann VCE 2800/250 MC Vertical Turning Machine
Ref :
2735988-3-AW
Condition :
Used
Manufacturer :
Dorries Scharmann
Model :
VCE 2800/250 MC
Short Description :
Vertical Turning Machine
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Circulation / Processing Diameter: 2800 mm
Table Diameter: 2500 mm
Center Centering: 250 H7 mm
Clamping Stack Size: 1495 x 1250 x 150 mm
Radial Bearing Size: 680 x 460 x 140 mm
Clamping Force / Torque: 40 kN / 300 Nm
Workpiece Weight Capacity: 25000 kg
Table Drive Power (continuous): 100 kW
Table Torque: 44900 Nm
Holding Torque (drilling/milling device): 58900 Nm
Main Spindle Speed: 224 min⁻¹
Gearbox Steps: 2
C‑Axis Speed Range: 0.002 – 2.5 min⁻¹
C‑Axis Minimum Input Angle: 1/1000°
Crossbeam Positioning Grid: 100 mm
Crossbeam Adjustment Speed: 400 mm/min
Features / Options
Vertical Turning Machine
