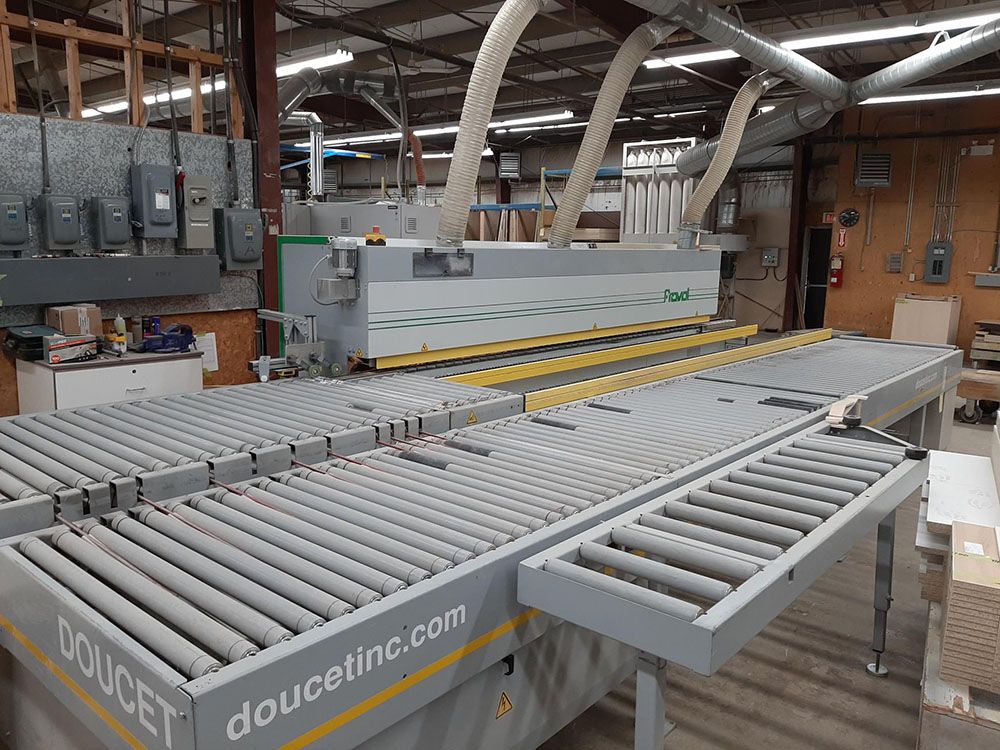

Doucet RT3-36-5-19-G-PT

Fully Functional
With 19' return

• Minimum part sizes on conveyors: 12" x 12"
• Minimum part sizes on conveyors if equipped with panel deviator: 4" x 12"
• Maximum panel sizes feeding all 4 sides: 52" x 52"
• Maximum panel sizes feeding long sides: 52" x 96"
• Maximum panel sizes feeding short sides if equipped with PT-90 Turner Option: 36" x 90"
• Maximum panel weight capacity: 80 lbs
• Thin and lower density panels may reduce the maximum size capacities of the return conveyor

• a 36" wide x 5' long receiving conveyor with 2" 0 pvc rollers on 3" centers
• a 36" wide x 19' long return conveyor with 2" 0 pvc rollers on 3" centers
• a belt transfer device 6" wide featuring 9 transfer belts
• a transfer by-pass switch o voltage: 220, 440 or 600 / 3 / 60, 8 amps
• compressed air requirement: 10 cfm @ 90 psi
• a left hand return

A PT-90 panel turner to return long rectangular panels lengthwise rather after finishing of their narrow side
and outfeed pressure 8-wheel kit with rheostat covered wheels for automatic thickness adjustment from 5/8" to 1-1 /8".
