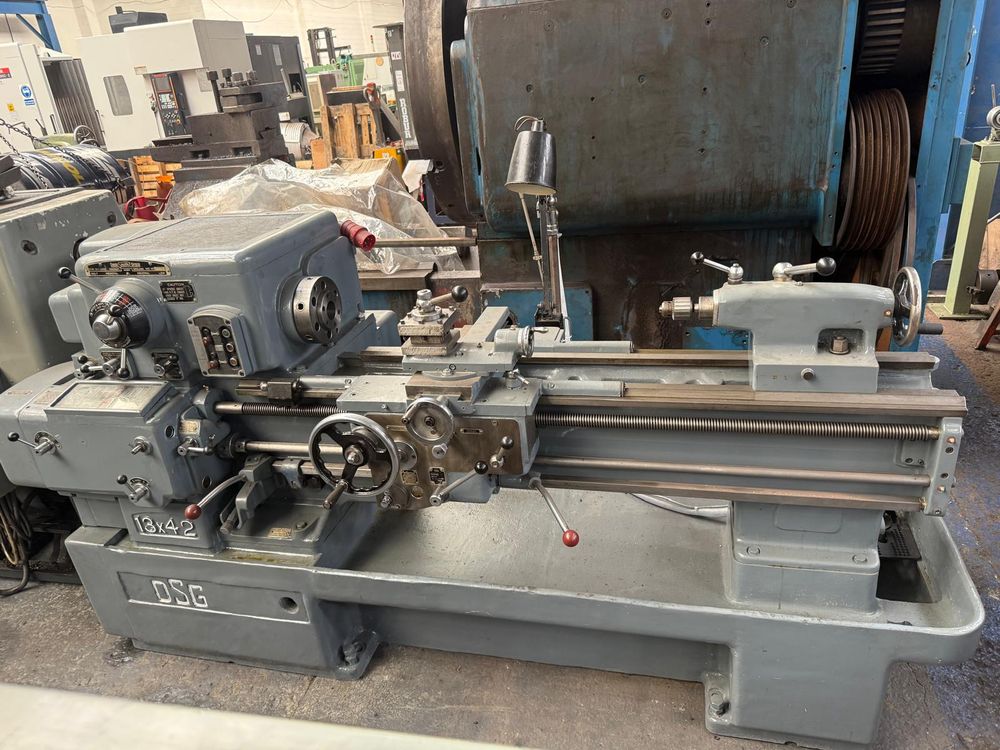

DSG Engine Lathe 2240 rpm T13 x 42

Ref : 2761990-3-AW

Condition : Used

Manufacturer : DSG

Type : Engine Lathe

Spindle Speed : 2240 rpm

Model : T13 x 42

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Between centers 42″
Swing over bed 13.5″
Swing over saddle 8.25″
Swing over bed (maximum) 14″
Spindle speeds 17.5–1400 rpm
Optional spindle speeds 17.5–2240 rpm
Spindle bore 1 5/8″ (41 mm)
Chuck mounting D1-6 camlock
Motor 5 hp or 7.5 hp 3-phase
Lead screw diameter ~1 3/8″
Lead screw pitch ¼″
Weight ~3.2 tons

Straight bed machine
Quick-change tool post
Four holders and keys
3-jaw chuck
4-jaw chuck
Fixed steady
Coolant
Clutch-reverse
Feed trip
Gear change handles
Robust apron handwheel
Bed wipers
Saddle lock
Taper-turning attachment
