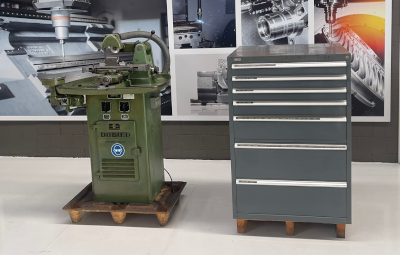

Dubied 564

Table length = 476 mm
Table width = 112 mm
Longitudinal travel = 180 mm
Cross travel = 150 mm
Table swivel range = ±30°
Vertical grinding wheel travel = 200 mm
Max distance table to grinding wheel axis = 250 mm
Min distance table to grinding wheel axis = 50 mm
Max between centers diameter = 155 mm
Max diameter without tailstock = 215 mm
Motor speed = 1500 / 3000 rpm (2-speed)
Grinding spindle speed = 3700 / 7400 rpm or 5000 / 10000 rpm
