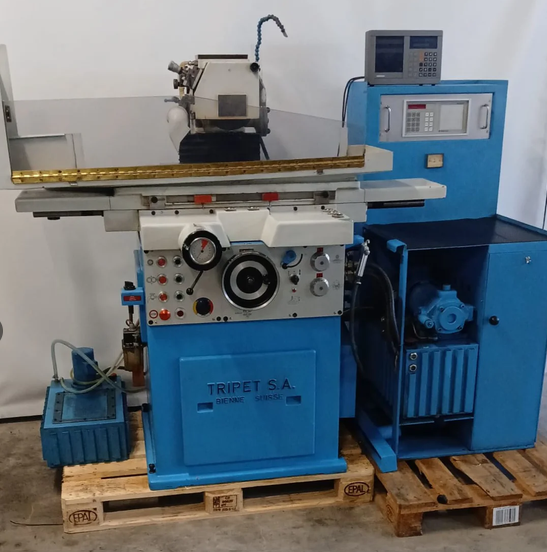

Tripet MHPE 500

Table Size: 600 x 200 mm
Grinding Length: 500 mm
Grinding Width: 200 mm
Grinding Height: 300 mm
X-Axis Travel: 530 mm
Y-Axis Travel: 220 mm
Automatic Cross Feed: Stepless up to 9 m/min
Table Speed: Stepless up to 21 m/min
Creep Feed: 0.5 - 8000 mm/min
Grinding Wheel Diameter: 225 mm
Grinding Wheel Width: 25 mm
Grinding Wheel Speed: 1000 - 2700 RPM
Voltage: 380 V, 3 Phase, 50 Hz
Grinding Spindle Motor: 1.8 kW
Dimensions: 1000 x 700 x 1500 mm
Electrical Cabinet Dimensions: 800 x 600 x 1500 mm
Weight: 800 kg

Hydraulic Operation
Automatic Vertical Feed
Coolant System
Magnetic Chuck 500 x 200 mm
Grinding Wheel with Flange
