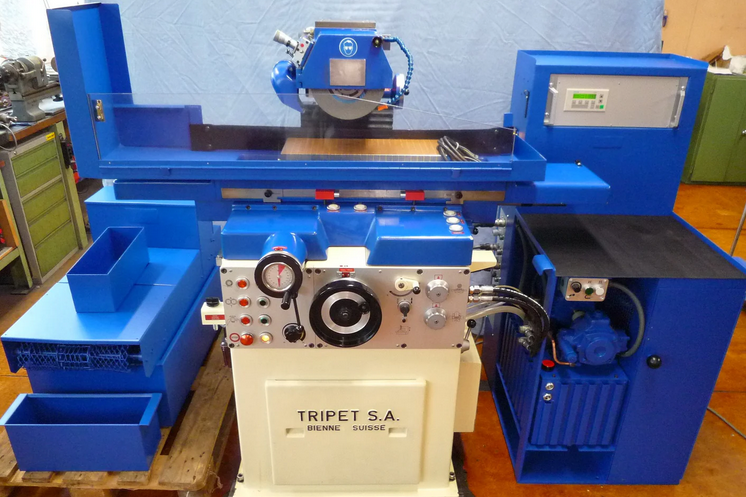

Tripet MHPE 500

Table Length: 600 mm
Table Width: 200 mm
Grinding Length: 500 mm
Grinding Width: 200 mm
Grinding Height: 300 mm
Longitudinal Travel (X-axis): 530 mm
Transversal Travel (Y-axis): 220 mm
Automatic Cross-Feed Stepless: up to 9 m/min
Table Speeds Stepless: up to 21 m/min
Creep Feed: 0.5–8000 mm/min
Grinding Wheel Diameter: 225 mm
Grinding Wheel Width: 25 mm
Grinding Wheel Speeds: 1000–2700 t/min
Voltage: 3×380 V 50 Hz
Grinding Spindle Motor: 1.8 kW
Machine Weight: 800 kg
Overall Dimensions (L×W×H): 1000×700×1500 mm
Control Dimensions (L×W×H): 800×600×1500 mm
Hydro-Electric Cabinet: Yes
Paper Filtration System: Yes
Magnetic Plate (L×W): 500×200 mm
Central Lubrication: Yes
