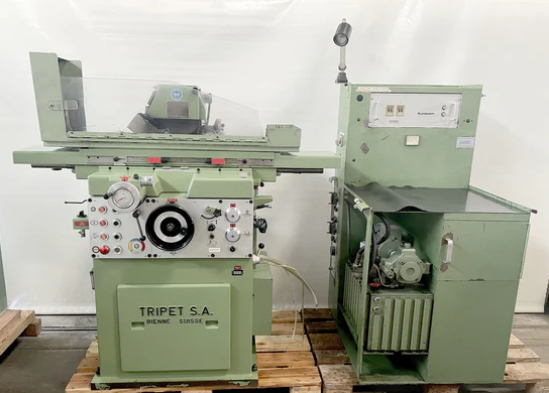

Tripet MHPE 500

X-axis travel: 530 mm
Y-axis travel: 220 mm

Hydraulic table drive
Stepless automatic cross feed
Stepless table feed
Automatic vertical feed

Table length: 600 mm
Table width: 200 mm
Grinding length: 500 mm
Grinding width: 200 mm
Grinding height: 300 mm

Grinding wheel diameter: 225 mm
Grinding wheel width: 25 mm
Grinding wheel speed range: 1000–2700 rpm
Grinding spindle motor power: 1.8 kW

Cross feed rate: up to 9 m/min
Table feed rate: up to 21 m/min
Creep feed range: 0.5–8000 mm/min

Hydro-electric cabinet
Coolant system
Machine lamp
Central lubrication system
Splash guard

Machine length: 1000 mm
Machine width: 700 mm
Machine height: 1500 mm
Machine weight: 800 kg
