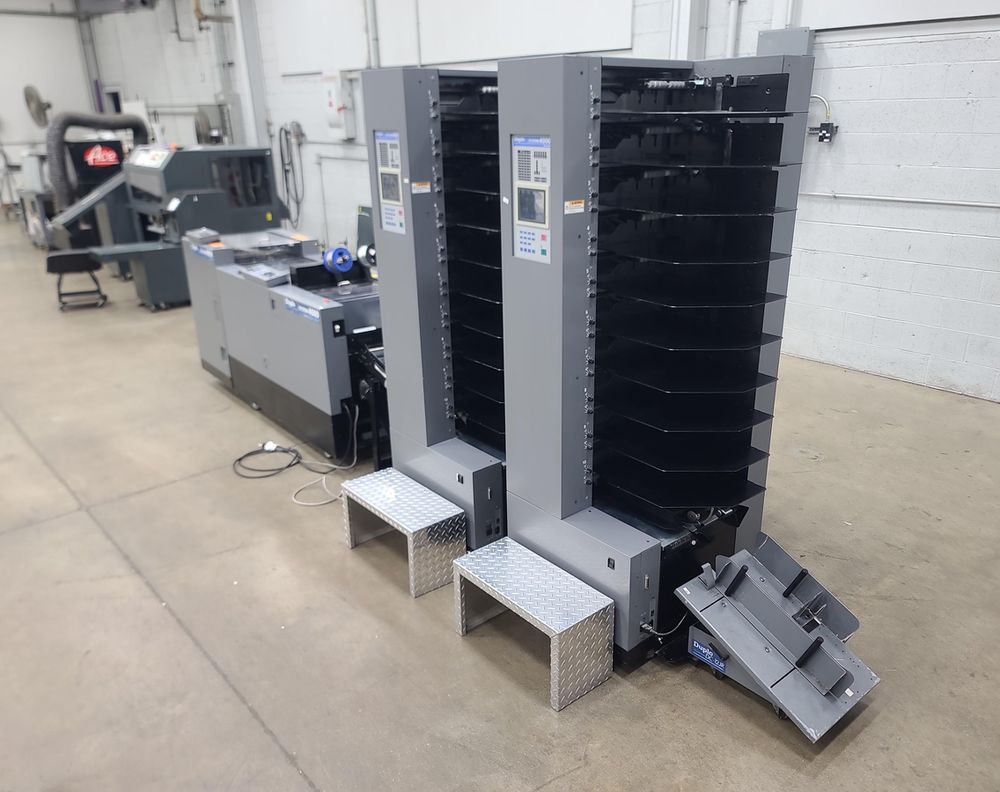

Duplo System 4000

Booklet Making System w/ 20-Bin Collating Tower, Stitcher, Folder & Trimmer
Features:
Complete bookletmaking system with two DC-10/60 10-bin vacuum-feed collating towers
DBM-400 automatic stitcher and folder
DBM-400T inline face trimmer
Long delivery stacker with LUL-HM lifting unit
Vacuum-feed collating system for reliable feeding of coated and uncoated stocks
Automatic saddle stitching, folding, and face trimming in one continuous workflow
Modular design for flexible production configurations
Touchscreen controls with programmable job memory
Supports saddle stitch, corner stitch, side stitch, and fold-only applications

Specifications:
Production Speed: Up to 4,200 booklets per hour
Collating Speed: Up to 10,000 sets per hour
Collating Towers: (2) DC-10/60 10-bin vacuum-feed collators
Maximum Booklet Capacity: Up to 25 sheets (100-page booklet)
Maximum Stitching Capacity: Up to 30 sheets
Booklet Sheet Size: 4.5in x 6.6in to 14in x 20in
Stitching Sheet Size: 4.73in x 5.51in to 13.82in x 14.41in
Stitching Modes: Saddle, Corner, Side, or Fold Only
Stitching Heads: 2 Standard Hohner Heads (Expandable to 4)
Job Memory: 8 Programmable Settings
Paper Detection: Jam and Misfeed Detection
Power Requirements: 120V, 60 Hz, 8 Amps
Dimensions: 57in x 27in x 36in (Bookletmaker)
Weight: 640 lbs (Bookletmaker)
