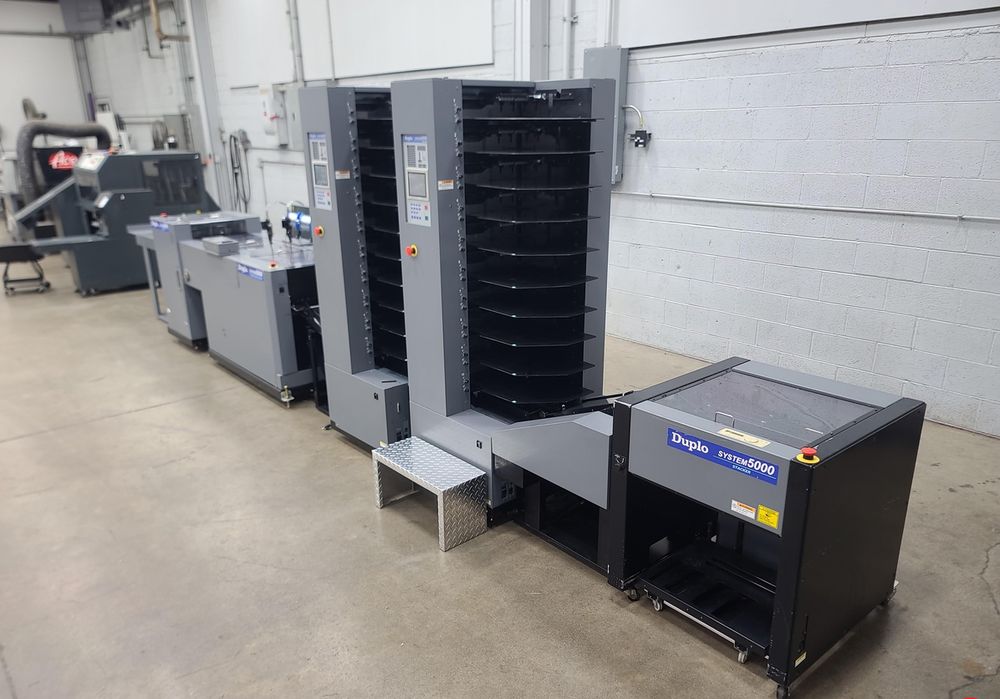

Duplo System 5000

Dynamic Bookletmaking System w/ 20-Bin Collating Tower, Trimmer & Stacker
Features:
(2) DC-10/60 10-bin suction-feed collating towers
DBM-500 automatic bookletmaker
DBM-500T inline face trimmer
DBM-400STR programmable high-capacity stacker
Up to 5,000 finished booklets per hour
Up to 9,800 collated sets per hour
Automatic stitch, fold, and trim setup
Saddle stitch, side stitch, corner stitch, or fold-only operation
Vacuum suction feeding with air separation system
12 programmable job memory positions
Handles coated and uncoated stocks
Modular system for high-volume booklet production

Specifications:
Production Speed: Up to 5,000 booklets per hour
Collating Speed: Up to 9,800 sets per hour
Collating Towers: (2) DC-10/60 10-Bin Suction Feed Towers
Maximum Bins: Up to 60 (expandable)
Booklet Capacity: Up to 25 sheets (100 pages)
Bookletmaker: DBM-500
Face Trimmer: DBM-500T
Stacker: DBM-400STR High-Capacity Stacker
Paper Size: 4.72in × 6.7in to 14in × 20in
Stitching Modes: Saddle, Side, Corner, or Fold Only
Stitch Heads: Two Standard Hohner Heads (Expandable to Four)
Programmable Job Memory: 12 Jobs
Power Requirements: 120V, 60 Hz, 6.5A
