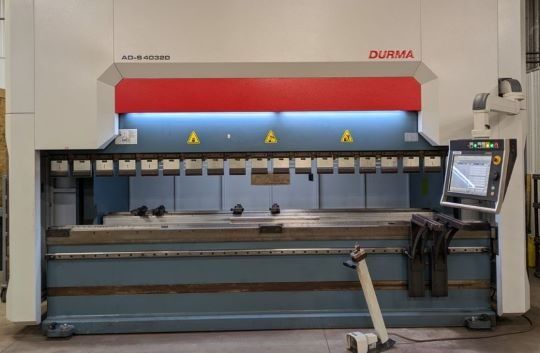

Durma AD-S 40320 350 tons

Press force 350 tons
Bending length 13' 3"
Distance between columns 11' 10"
Table width 6"
Table height 35.4"
Ram stroke 14"
Daylight 25"
Throat depth 16"
Motor 50 HP
Y-axis rapid speed 360"/min
Y-axis working speed 24"/min
Y-axis return speed 360"/min
Backgauge X-axis working speed 1200"/min
Backgauge R-axis working speed 840"/min
Backgauge R-axis working distance 10"
Ram repeatability 0.0004"
Backgauge travel 26"
Control DELEM DA 66T CNC
Programming software DELEM Profile T Light
CNC axes Y1, Y2, X, R
Servo motor backgauge with linear guided and ballscrew system (X-R)
Universal wedge style punch clamp for American or European style punches
60 mm die holder for European dies only
Sliding sheet support arms on linear rail with T-channel and tilting stop
CNC-controlled motorized crowning
CE with manual F.AKAS II M-FPSC-B-C safety PLC
