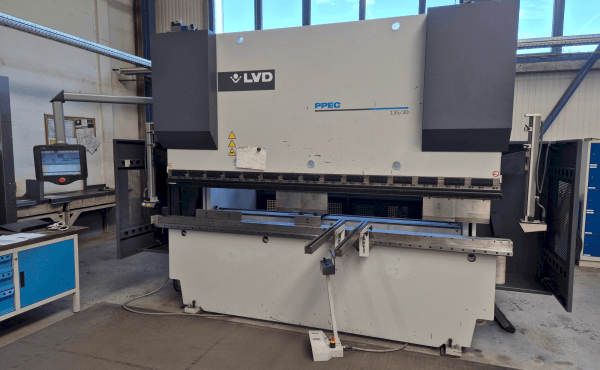

LVD PPEC-7 135/30 135 T

Working length: 3050 mm
Distance between uprights: 2600 mm
Stroke: 200 mm
Distance table to ram: 500 mm
Throat depth: 400 mm
Approach speed: 100 mm/s
Working speed: 11 mm/s
Return speed: 100 mm/s
Motor power: 11 kW
Oil capacity: 275 L
Weight: ~10,000 kg
Controller: Cadman Lite (2D graphical programming, Quick Bend, collision control)
Table: Automatic crowning system (V-axis)
Upper tool clamping: Wila hydraulic system
Backgauge: X, X’, R, Z1, Z2
Backgauge fingers: 2 pcs (3 measuring positions, up to 1000 mm gauging)
Laser safety system: CE – Lasersafe
2 front support arms: PP1115
Welded one-piece frame
Servo-hydraulic system with Y1–Y2 encoders (0.01 mm accuracy)
Precise and stable bending geometry
Suitable for serial and precision production
