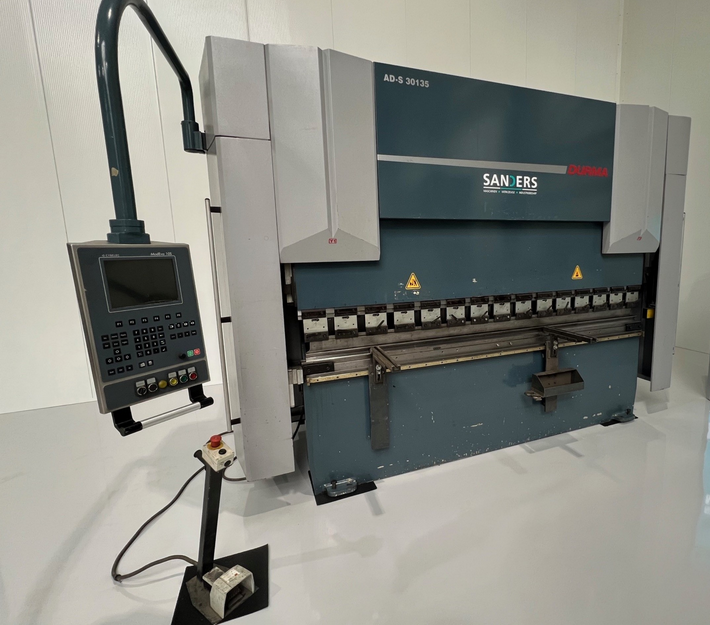

Durma CNC AD-S 30135 135 t

Tonnage: 135 t
Bending Length: 3050 mm
Distance Between Columns: 2600 mm
Stroke (Upper Beam): 265 mm
Throat Depth: 450 mm
Daylight Opening: 530 mm
Working Speed: 10.0 mm/sec
Adjustment Speed: 160 mm/sec
Return Speed: 100 mm/sec
Oil Volume: 250 l
Total Power Requirement: 18.5 kW
Machine Weight: 10,900 kg
Machine Dimensions: 4250 x 1700 x 2850 mm
Backgauge Adjustable Range: 800 mm
Work Height Max: 900 mm

Control: CYBELEC ModEva 10S CNC
CNC Control: DELEM DA 66W
2D Graphical Programming: Yes
Automatic Bending Sequence Calculation: Yes
Collision Detection: Yes
CNC Axes: Y1, Y2, X, R, Crowning (WILA)
CNC Backgauge (X Axis): Electric
Backgauge Travel Speed: 500 mm/sec
CNC Height Adjustment (R Axis): Electric
R Axis Travel Speed: 350 mm/sec
R Axis Travel Range: 250 mm
Backgauge Fingers: 4 manually adjustable
Backgauge System: Ball screw with linear guides
Table Crowning: WILA CNC motorized
Front Safety Device: Laser system
Tool Clamping System: WILA matrix shoe manual clamping
Upper Tool Holder: Quick-change adapter system
Front Support Arms: 2 movable on linear guide
Side Safety Guarding: Included
Rear Safety Guarding: Included
Foot Switch: Free-moving
Frame: Stress-relieved monobloc steel construction
Documentation: User manual included
CE Safety Standards: Included
