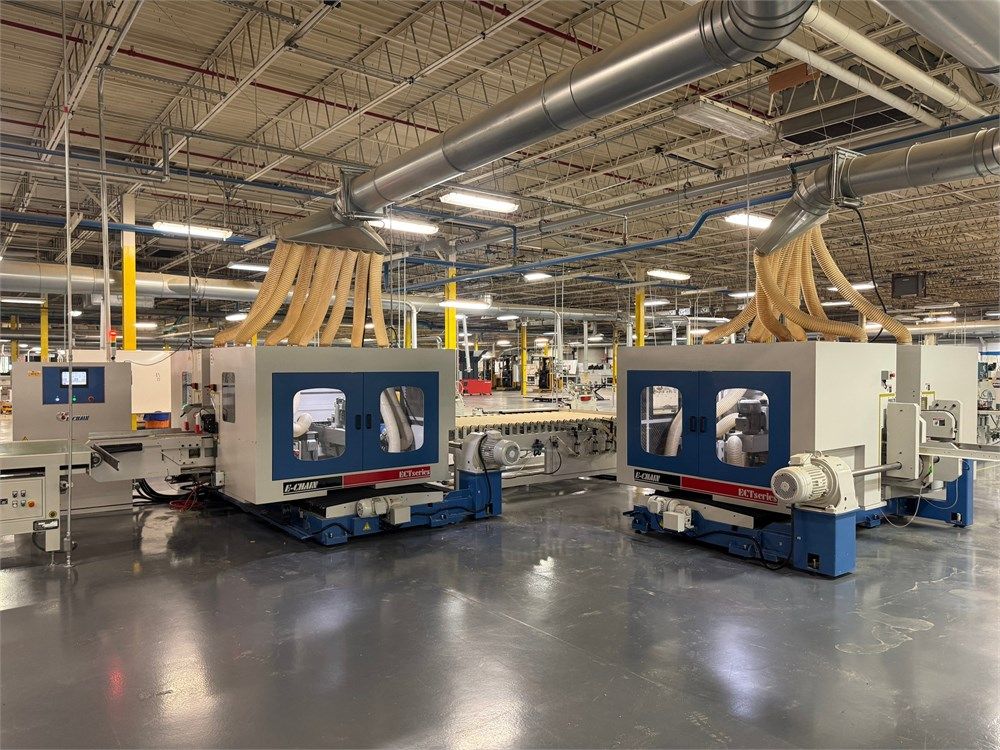

ECT-48S Angular Double End-Tenoner Line

E-Chain ECT-48S Angular Double End-Tenoner Line
System Configuration:
Tenoner #1 – ECT-48S
36" load space
Heavy-duty 2-1/2" transport chains
Pop-up dogs every 15-1/2"
Approximate maximum working width: 54"
Lighted sound enclosure

Processing Stations:
1st Station: Vertical ATS spindle, 7.5 HP
2nd Station: 10 HP processing unit
3rd Station: 3-point tilting belt sander
2.2 kW / 2.9 HP
4th Station: Pneumatic tilt unit

Powered Roller Conveyor & Cross Transfer (ECT-3L)
Designed to transfer material between machines while maintaining part orientation and production flow.

Features:

51" powered rollers
(5) cross-transfer belts
72" transfer length
Overall dimensions:
120" L × 88" W × 38" H

Tenoner #2 – ECT-48S
Configured identically to Tenoner #1:
36" load space
Heavy-duty 2-1/2" transport chains
Pop-up dogs every 15-1/2"
Approximate maximum working width: 54"
Lighted sound enclosure

Processing Stations:
1st Station: Vertical ATS spindle, 7.5 HP
2nd Station: 10 HP processing unit
3rd Station: 3-point tilting belt sander
2.2 kW / 2.9 HP
4th Station: Pneumatic tilt unit

Control Equipment:
Central operator control station
Controller dimensions:
48" × 30" × 72"
Custom dust collection manifolds included
Integrated production line configuration

Condition Notes:
Great operating condition
Complete production line configuration
Includes conveyor transfer system and controls
Heavy-duty industrial construction throughout
