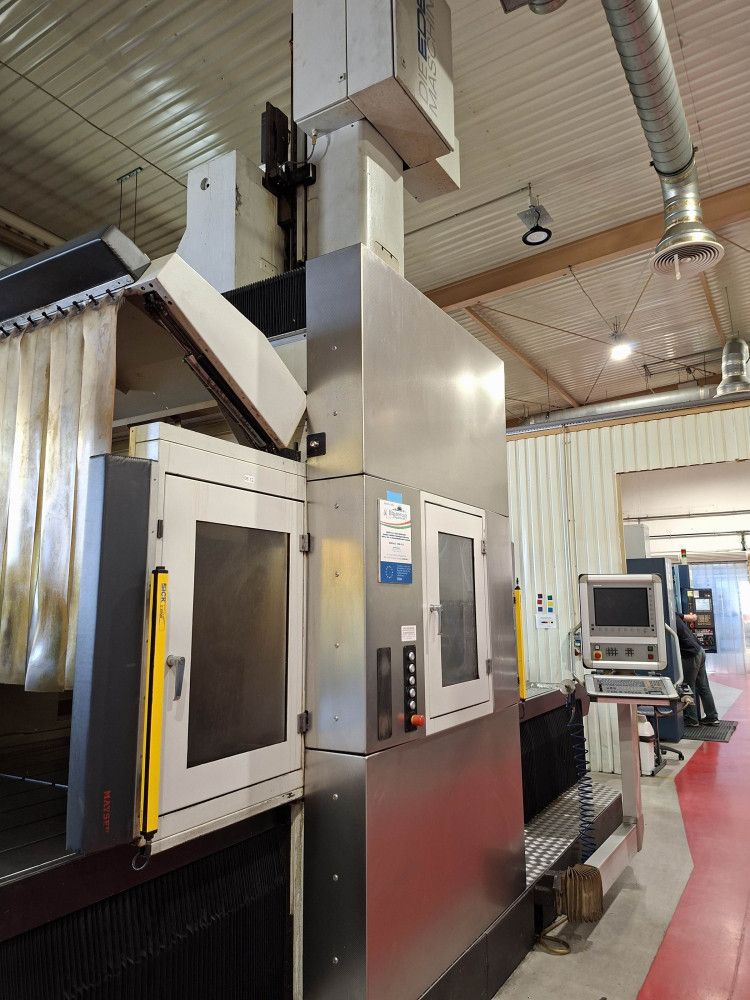

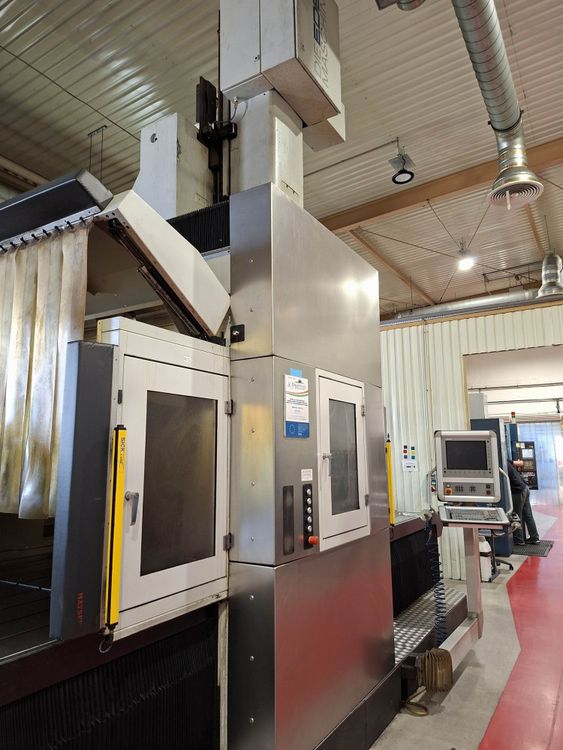

Edel CP 3015/07 3 Axis

Axis travel X: 3000 mm
Axis travel Y: 1500 mm
Axis travel Z: 1000 mm
Integrated rotary table CRT/1000/H
Table diameter: 1000 mm
Maximum table load: 4000 kg
Maximum rotary table speed: 50 rpm
Axial runout: 0.02 mm
Peak torque: 3600 Nm
Clamping torque: 10000 Nm
Rotary table nominal pressure: 60 bar
Rotary table nominal current: 400 V
Initial signal: 1 Vss sin/cos
Rotary table accuracy: ±2.5 arcsec
Power dissipation: 3.5 kW
Rotary table weight: approx. 950 kg
Control: Heidenhain iTNC 530
Handwheel: HR410
Direct measuring system on all axes
Gantry opening in Z: 1200 mm
Standard enclosure with operating-side doors
Double-row transparent strip splash guard
Safety bumper
Ethernet interface
NC head: Direct drive M21
Tool measuring system: BLUM laser
Workpiece measuring system: M & H radio probe
Contour control software: M & H 3D-Forminspekt with Teaching
Internal coolant supply
External coolant supply
Coolant tank: 800 l
Coolant pressure: 20 bar
Coolant flow: 30 l/min
Coolant pressure: 40 bar
Coolant flow: 20 l/min
Proportional valve for variable internal coolant pressure
External air cooling changeover
Coolant filtration: 40 μ
Spindle power (S1): 21 kW
Maximum spindle speed: 18000 rpm
Nominal spindle speed: 2000 rpm
Maximum torque (S1): 100 Nm
Maximum torque (S6): 120 Nm
Tool interface: HSK-A63
Tool changer: 64 positions
T-slot: 18H12
Adjustment slot: 18H8
T-slot: 22H12
Adjustment slot: 22H8
Fixator set: 1 set
