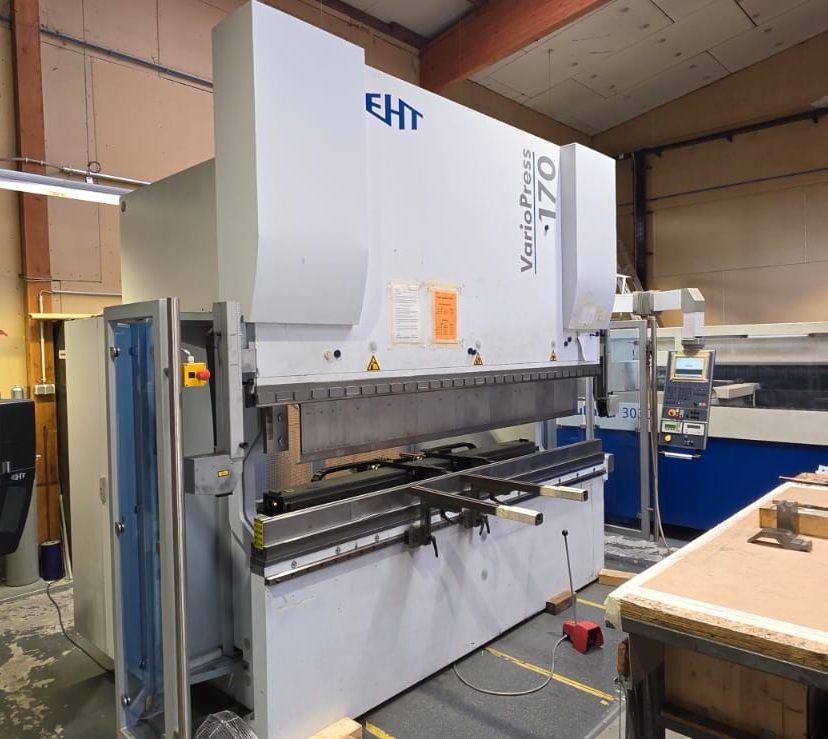

EHT VARIOPRESS 170-30 170 t

Press force: 170 t
Bending length: 3050 mm
Distance between columns: 2550 mm
Control: CYBELEC ModEva 10 S
Column arm: 405 mm
Ram stroke: 400 mm
Distance between table and ram: 320–720 mm
Feed down speed: max. 220 mm/sec
Feed bending speed: max. 10 mm/sec
Feed up speed: max. 220 mm/sec
Connected load: 27 kVA
Total power requirement: 18.5 kW
Machine weight: 13,600 kg
Machine dimensions: 4200x2000x3000 mm
Stop support adjustment XM-axis (from bend line): 0–1005 mm
Adjustment speed XM-axis: max. 1200 mm/sec
Drive power XM-axis: 0.85 kW
Stop support adjustment XS-axis (from bend line): 0–1005 mm
Adjustment speed XS-axis: max. 1200 mm/sec
Drive power XS-axis: 0.85 kW
Height adjustment R-axis (from table surface): 65–265 mm
Adjustment speed R-axis: max. 200 mm/sec
Drive power R-axis: 1.25 kW
Die shift adjustment range: max. 100 mm
Die shift adjustment speed (X-axis): 1200 mm/sec
