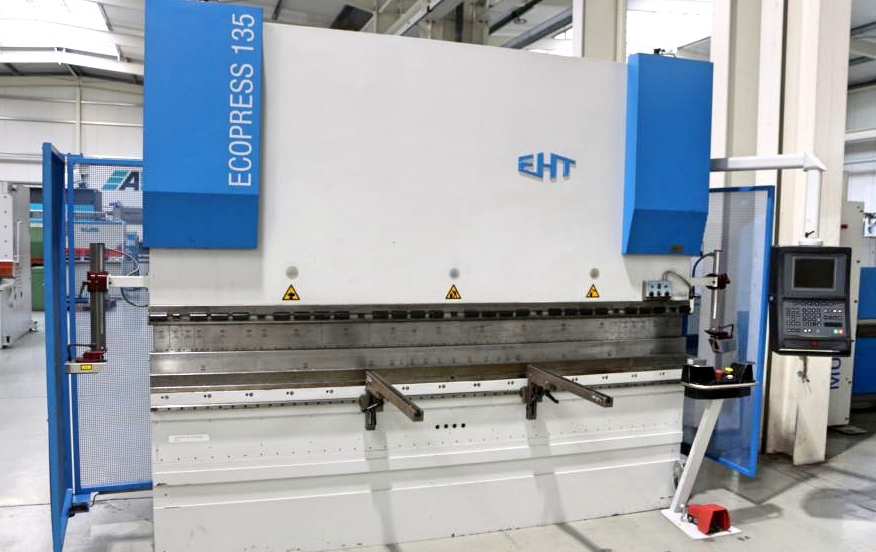

EHT ECOPRESS 135-30 135 t

Press force: 135 t
Bending length: 3050 mm
Distance between columns: 2550 mm
Daylight opening: 320–560 mm
Stroke: 240 mm
Working feed speed: 10.0 mm/sec
Return speed: 150 mm/sec
Throat depth: 400 mm
Maximum working height: 1050 mm
Operating pressure: max. 297 bar
Compressed air requirement: 4.5–6.0 bar
Connected load: 15.0 kW
Oil volume: 250 l
Machine weight: 11500 kg
Machine dimensions: 5240 x 2400 x 2900 mm

CNC electro-hydraulic press brake
CNC control: Cybelec DNC 1200 PS/B
Swiveling control panel
Numerical programming
Tool library
Program library
CNC-controlled axis Y1
CNC-controlled axis Y2
CNC-controlled axis X
CNC-controlled axis R
CNC crowning
Electro-motorized backgauge
Backgauge travel speed: 250 mm/sec
Manually adjustable backgauge fingers
Electro-motorized backgauge height adjustment
Backgauge height adjustment speed: 100 mm/sec
CNC under-table crowning
CNC pneumatic die shifting
Pneumatic upper tool clamping
Pneumatic lower tool clamping
Laser safety device
Rear safety guard
Side safety guards
Front support arms
Original split upper tools
Original lower tools
Two-hand foot control
