EHT VARIOPRESS 175-40-30 175 t

Press Force – 175 t
Chamfer Length – 4050 mm
Distance Between Columns – 3050 mm
Column Arm – 300 mm
Adjustment Speed – 140 mm/sec
Working Speed – 10.0 mm/sec
Return Speed – 130 mm/sec
Work Stroke – 360 mm
Daylight – 340–700 mm
Table Height – 1000 mm
Table Width – 200 mm
Oil Volume – 300 ltr.
Operating Pressure – max. 295 bar
Air Pressure – 4.5–6.0 bar
Voltage – 3x 400 Volt
Total Power Requirement – 15.0–27.0 kW
Weight – 17200 kg
Machine Dimensions L-W-H – 5850 x 2550 x 3200 mm
CNC Control – CYBELEC VisiTouch 19 touchscreen
Graphic 2D numerical control
CNC-controlled axes: Y1+Y2 / X+X1 / R / Z1+Z2 / BV1+BV2 / I + CNC crowning

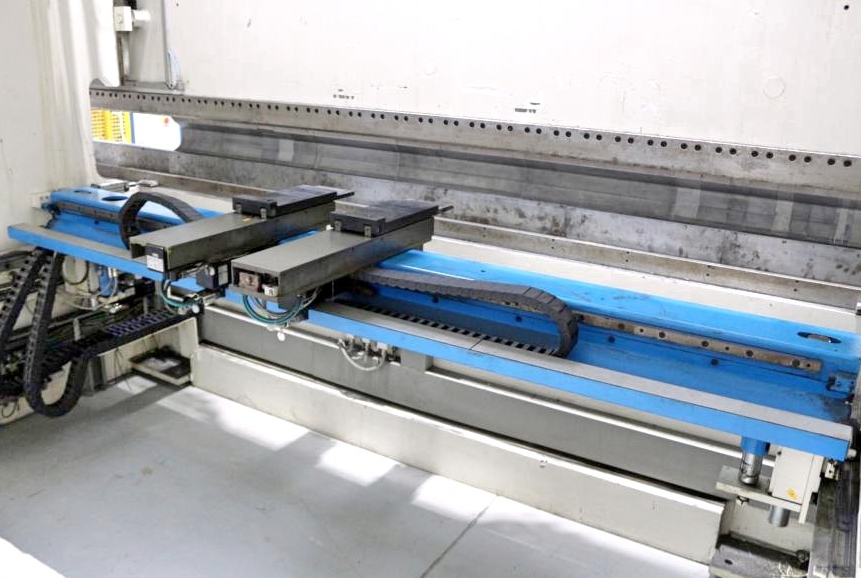

CNC electro-motoric back stop adjustment (X-axis)
Back Stop Adjustment Range X Axis – 5.0–1000 mm
X1 Axis Adjustment – +/- 125 mm
CNC-controlled vertical adjustment of stop fingers (R axis)
R Axis Adjustment Range – 85–235 mm
CNC-controlled left-right adjustment of stop fingers (Z1+Z2 axis)
CNC-controlled / pneumatic die displacement (I axis)
2x CNC-controlled front bending aids (BV axes)
BV Axes Swivel Angle Max – 45°
BV Axes Swivel Speed Max – 45°/sec
CNC-controlled electric table crowning
Pneumatic upper tool clamp
Pneumatic lower tool clamp
Freely movable 2-hand/foot control
Rear protective device (protective grille)
Side protective device (swivel doors)
Various bending tools
Original operating instructions and circuit diagram
