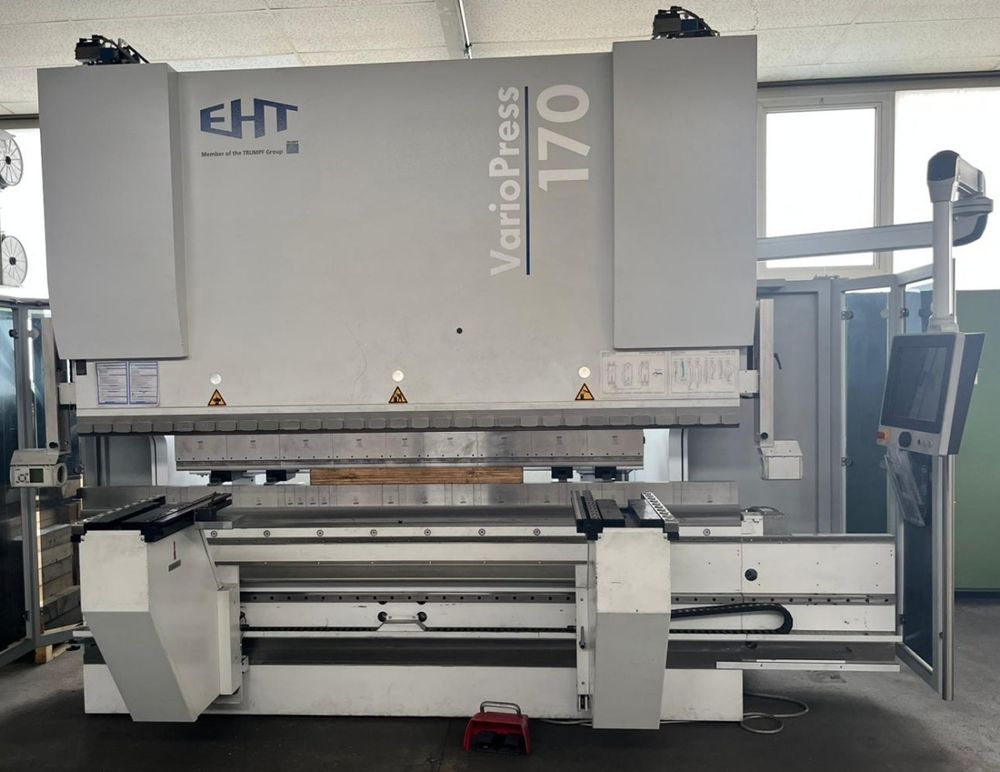

EHT VarioPress 170-30 170 t

Press Force: 170 t
Bending Length: 3050 mm
Distance Between Columns: 2550 mm
Stroke: 400 mm
Machine Weight: 15300 kg

Length Measuring System (Y-axis) with Dynamic Spring Compensation
Electro-Hydraulic Top Drive
Block Hydraulic System
Control Cabinet Air Conditioning Unit
Adapter Strip for Tool Mounting
2 Stop Fingers
Machine Frame: Sturdy Construction
Press Beam: Included
Spherical Bearing with Press Beam Tilt

Optional Equipment:
2-Axis Backgauge (XM/XS, R)
Sheet Metal Holding Device 200 daN CNC
Additional Stop Fingers (2/4-axis)
Pneumatic Upper Tool Clamping 26 mm
Pneumatic Lower Tool Clamping 55 mm
Lower Tool Shift (Pneumatic)
CNC Crowning Device 3000 kN/m
Operator Safety Guard PILZ PSENvip Productive
2 x Bending Aid 1500 N
Support Strips for Bending Aid
Parking Position Right (Short)
Fast Folding Function
