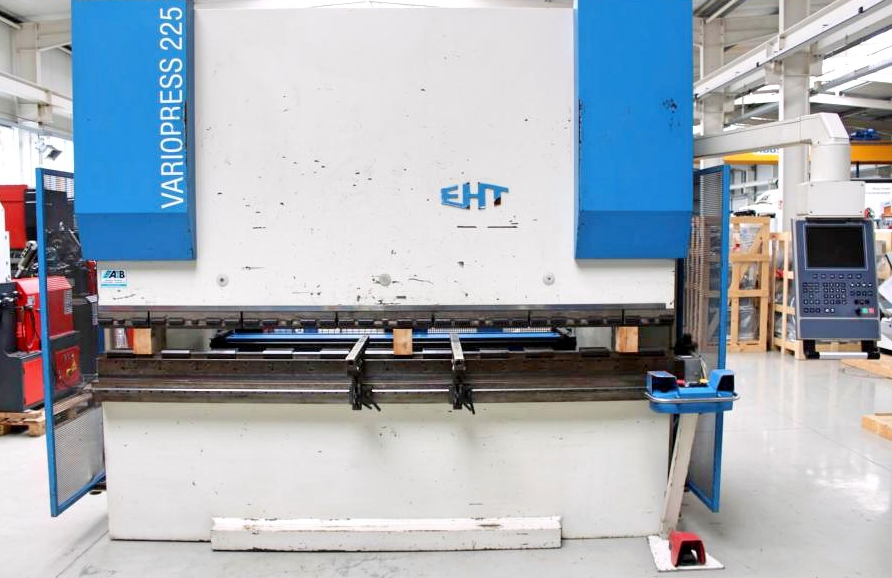

EHT VARIOPRESS 225-30 225 t

Press Force 225 t
Chamfer Length 3050 mm
Distance Between Columns 2550 mm
Column Arm 300 mm
Adjustment Speed 110 mm/sec
Work Speed 9 mm/sec
Return Speed 130 mm/sec
Work Stroke 240 mm
Daylight 320 - 560 mm
Table Height 1000 mm
Table Width 200 mm
Oil Volume 350 l
Operating Pressure max. 296 bar
Air Pressure 4.5 - 6.0 bar
Voltage 400 V
Total Power Requirement 18.5 kW
Machine Weight 14,900 kg
Machine Dimensions 5180 x 2400 x 3100 mm

Electro-Hydraulic CNC Die Bending / Press Brake
CYBELEC CNC Control ModEva 12S Swiveling Front Right
High-Resolution Graphic Color Screen 14 Inches
Product Representation as Line, Area or Volume Drawing
Clear Menus in Operator Language
Large Tool and Product Library
CNC-Controlled Back Gauge Adjustment (X Axis)
Stop Range X Axis 5 - 1000 mm
Adjustment Speed Max. 250 mm/sec
CNC-Controlled Vertical Adjustment of Stop Fingers (R Axis)
Adjustment Range Table Surface 115 - 265 mm
Adjustment Speed Max. 100 mm/sec
Adjustment via Servo Motors
CNC-Controlled Adjustment of Stop Fingers Left-Right (Z1 + Z2 Axis)
Adjustment Range Z1 405 - 2565 mm
Adjustment Range Z2 485 - 2645 mm
Adjustment Speed Max. 1000 mm/sec
WILA CNC-Controlled Electric Table Crowning
Pneumatic EHT Upper Tool Clamping
Manual Lower Tool Clamping
1x Freely Movable Two-Hand/Foot Control
2x Front Movable Support Arms
Rear Protective Device Sliding Protective Grille
Side Protective Device Pivoting Protective Grille
1x Set of EHT Deer Foot Upper Tool Split (3000 mm)
1x Set of EHT Lower Tools Split (3000 mm)
Original Operating Instructions (Machine + Control)
