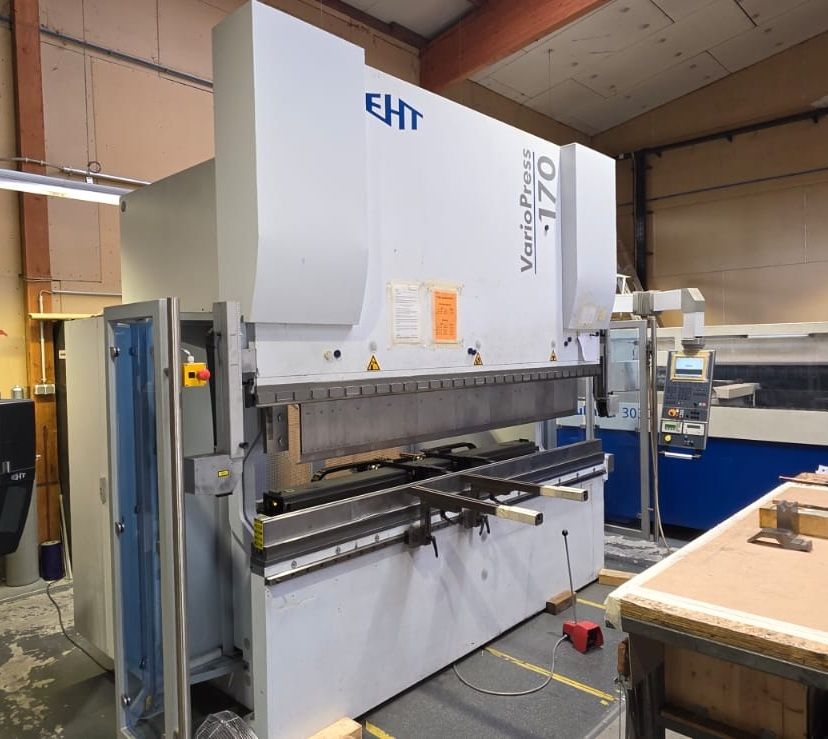

EHT VARIOPRESS 170-30 170 t
Ref :
2793392-3-MT
Condition :
Used
Manufacturer :
EHT
Model :
VARIOPRESS 170-30
Pressure :
170 t
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 170 t
Bending length: 3050 mm
Distance between columns: 2550 mm
Control: CYBELEC ModEva 10 S
Throat depth: 405 mm
Stroke: 400 mm
Table to ram distance: 320–720 mm
Downward speed: max. 220 mm/s
Bending speed: max. 10 mm/s
Upward speed: max. 220 mm/s
Connected load: 27 kVA
Total power: 18.5 kW
Machine weight: 13600 kg
Machine dimensions: 4200 x 2000 x 3000 mm
Crowning
Support arms: 2 pcs
Laser safety system
Side safety doors
Die shifting
Pneumatic upper tool clamping
Pneumatic lower tool clamping
Two-hand control
Foot pedal operation
Controlled axes: Y1
Controlled axes: Y2
Controlled axes: X
Controlled axes: R
Controlled axes: Z1
Controlled axes: Z2
