EHT VarioPress 225-20 225 t
Ref :
2725295-3-MT
Condition :
Used
Manufacturer :
EHT
Model :
VarioPress 225-20
Pressure :
225 t
Year(s) :
2003
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

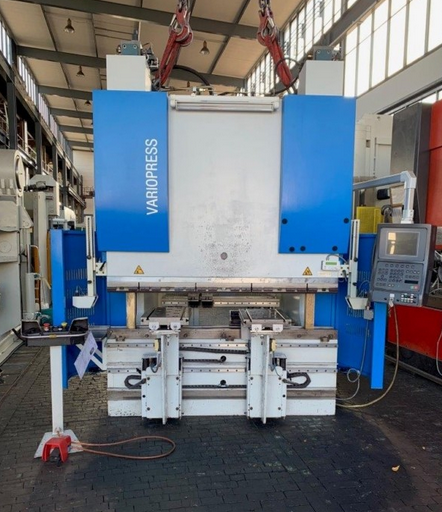

EHT VarioPress 225-20
2003
Press force: 225 t
Bending length: 2050 mm
Distance between columns: 1550 mm
Control: CYBELEC DNC 1200 PS Eco
Stroke: 550 mm
Table height: 700 mm
Throat depth: 405 mm
Distance between table and ram: 320–870 mm
Column arm depth: 405 mm
Weight: 14,000 kg
Controlled axes: Y1
Controlled axes: Y2
Controlled axes: X
Controlled axes: R
Manually adjustable Z1
Manually adjustable Z2
Laser angle measurement system
Pneumatically adjustable support table
Pneumatic upper tool clamping
Pneumatic lower tool clamping
Two-hand foot control
Manual crowning
