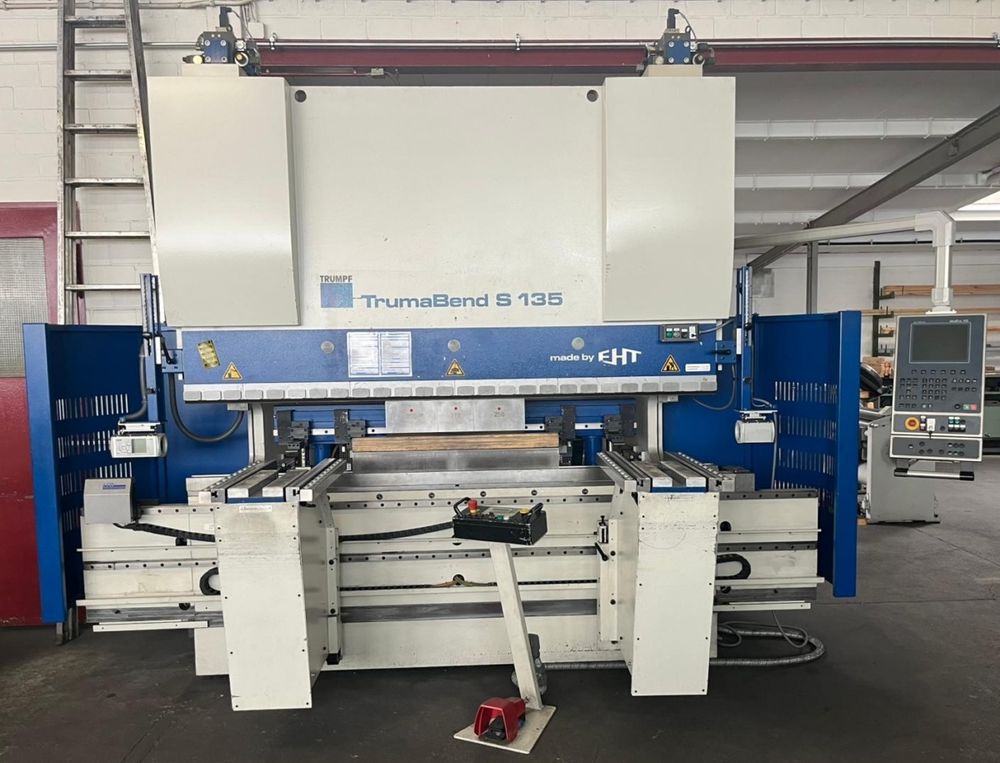

EHT TrumaBend S 135-25 135 t

Press force: 135 t
Bending length: 2550 mm
Distance between columns: 2050 mm
Control: CYBELEC ModEva 10 S
Total power requirement: 25 kW
Machine weight: 11000 kg

Machine frame: fully welded all-steel structure
Press beam: high bending strength
Drive system: electrohydraulic top drive via proportional valves
Hydraulic system: modern block hydraulic system

Optional equipment:
Increase in installation height and stroke by 150 mm each
Backgauge system 2 axes with R-axis adjustment 150 mm
Additional stop fingers 2/4-axis offset by 20 mm
CNC holding device
Distance bending line to holding device approx. 240 mm
Upper tool quick clamping pneumatic, head width 26 mm, self-centering
Lower tool clamping pneumatic, mounting width 55 mm
Hardened insert strip for lower tool clamping 55 mm / 90 mm
Die shift CNC-controlled infinitely variable
CNC crowning device in table
Safety device SICK V4000
Bending aids max. 1500 N
Support rails for bending aid with 14 mm T-slot and scale
Table extensions for bending aid
Parking position right and left, short
