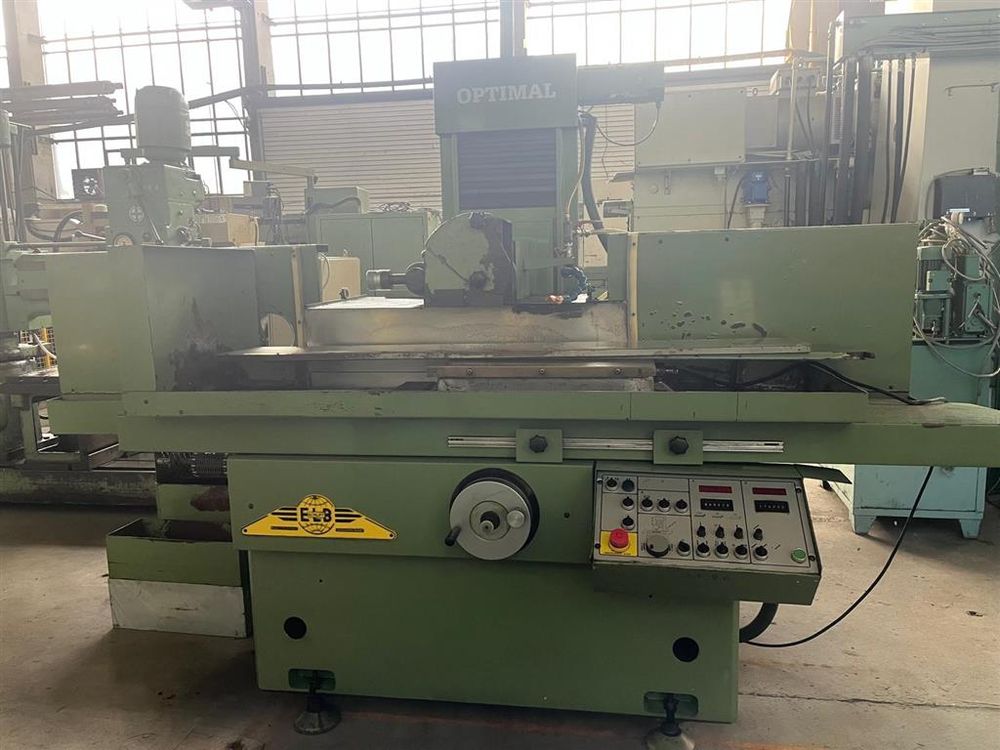

ELB SCHLIFF Optimal 6375 VA2-ND

Grinding length 600 mm
Grinding width 375 mm
Workpiece height 375 mm
Max. table load 300 kg
Grinding range 350-600 mm
Table dimensions 900 x 350 mm
Magnetic plate size 600 x 350 mm
Grinding wheel dimensions 300 x 50 x 76.2 mm
Total power requirement 12 kW
Machine weight approx. 5.2 t
Machine dimensions approx. LxWxH 3.3 x 2.6 x 2.4 m
Coolant device dimensions LxWxH 0.8 x 0.8 x 0.8 m
Longitudinal table stroke 700 mm
Transverse travel of table 800 mm
Coolant pump
