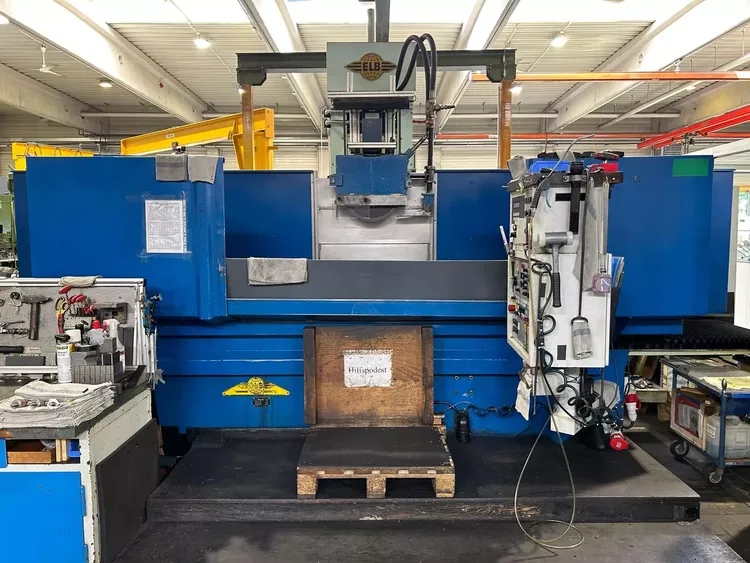

ELB SCHLIFF SWDE 012 NPC-K

Max. grinding length: 1500 mm
Max. grinding width: 900 mm
Max. working height with new grinding wheel: 800 mm
Max. working height with worn grinding wheel: 880 mm
Max. workpiece weight static: 1000 kg
Max. table load dynamic: 1500 kg/m

Grinding wheel diameter: 500 mm
Grinding wheel width: 100 mm
Table size: 1500 x 740 mm
Spindle mount: Cone 75
Magnetic chuck: 1500 x 900 mm
No rotary table

Paper band filter
Wet grinding unit
Electric straight dresser
Cross clamping
Magnetic chuck
No rotary table
