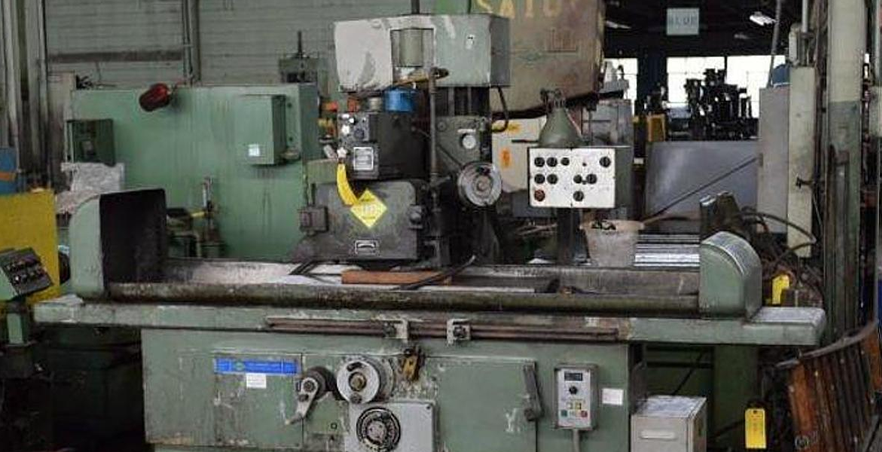

ELB SWN10VA1

Table Size: 15 in × 36 in
Magnetic Chuck Size: 12 in × 36 in
Hydraulic Cross Travel: 14 in
Longitudinal Feed Rate: 3–100 FPM
Cross Feed Stroke: 0.012–2 in
Wheel Feed Rate: 0.08–7 in
Infeed Range: 0.0004–2 in
Rapid Traverse (Wheel Head): 48 IPM
Maximum Distance Table to Spindle Center: 21 in
Grinding Wheel Size: 12 in × 2 in × 3 in

Grinding Wheel Rotation Fine Setting: 0.012
Hand Wheel Rotation: 0.04

Main Motor Power: 5 HP

Electrical Cabinet Dimensions: 40 in × 12 in × 58 in
Hydraulic/Coolant Tank Dimensions: 9 in × 26 in × 37 in
Machine Dimensions: 114 in × 64 in × 87 in
Approximate Machine Weight: 7,500 lb

Fully Automatic Hydraulic/Coolant System
