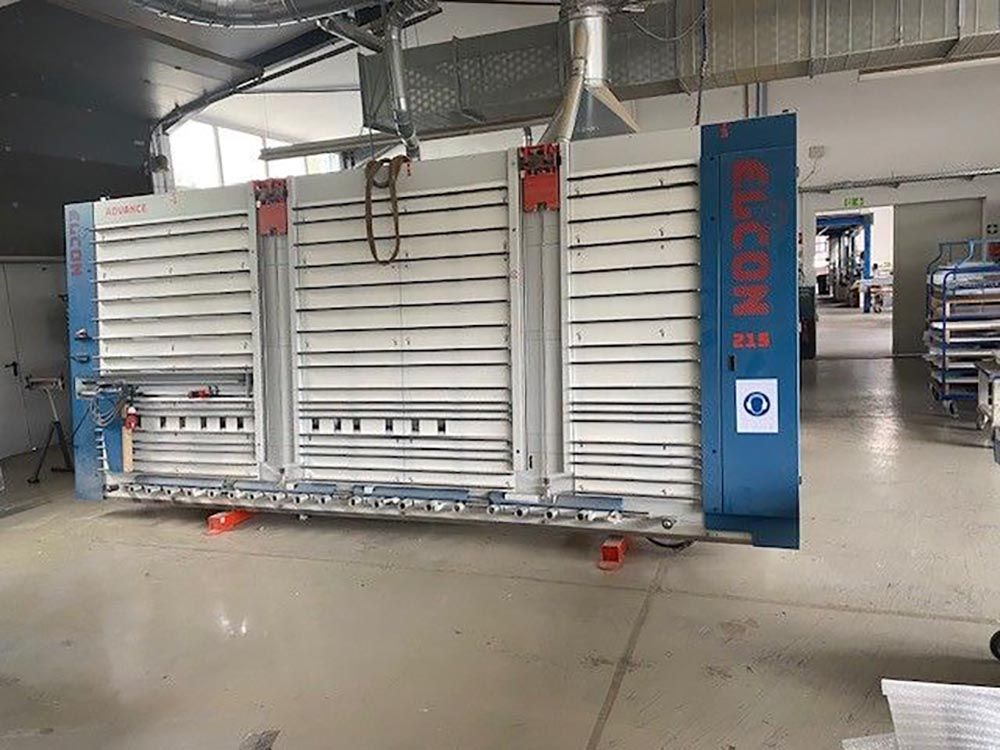

Elcon Advance 215 DSX-A

Cutting height: vertical 0-2,150 mm, horizontal 80-2,000 mm
Cutting length: 4,300 mm
Cutting depth: 80 mm (with clamps: 55 mm)
Saw blade diameter: 303 mm / bore 30 mm
Saw blade rotation: 5,000 rpm
Motor: 4 kW
Air pressure: 6 bar

Horizontal measurement reading:
-via scale from 0-2,070 mm
-via strip cutting stop from 75-500 mm

Vertical measurement reading:
-via scale from 0-1,300 mm
Extraction nozzles: 1 x 100 mm / 1 x 120 mm
ADVACNE clamping system (2 x pneumatic clamps) supports panels weighing approximately 150 kg.
Freestanding machine frame
Pneumatically adjustable slatted frame
3 center support elements
5 material support rollers per meter of cutting length
1 feed and 1 discharge roller
Template holder
Lighting and scale for vertical cuts

Equipment package I consisting of:
-Digital display for the folding stop
-Digital display for the saw unit with incremental function
-Pneumatically pivoting saw unit
-Scoring system with controlled counter-air nozzle
