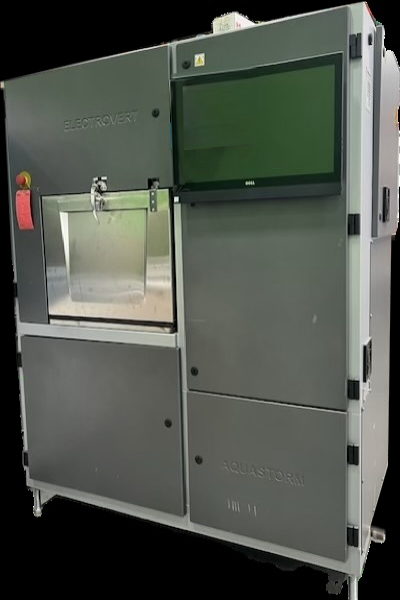

Electrovert Aquastorm 50

PCBA Batch Cleaning System

Details:
Touch Screen PC with Windows 7 Operating System,
and Data Logging
Top and Bottom Rotating Spray Bards for Flood Wash and Rinse
Capable of 180° in Wash and Final Rinse
Closed Looped Wash
Integrated Chemistry Container Storage with Level Sensor
Chemical Metering Pump
Torrid Zone Forced Convection Drying
GUI Interface with User Defined Recipe and Cycle Cleaning Creation
Software Selectable between a Straight DI or Chemistry Application
Power Clean Basket (Big Board)
Stackable Rack
Intelligent Rinse Control: Conductivity Probe for Rinse Discharge
(Controls Number of Cycles Based on Rinse Conductivity)
Stir Feature for Wash Tank (Stirs and Mixes Liquids in Wash Tank)
Sample Port- Port of Wash Pump Plumbing, Allows User to Sample Wash Bath Fluid. Accessible from Plumbing in Back of Machine)
Chemistry Concentration Monitoring – Software Integration and Plumbing Ready Kit for 3rd Party Chemistry Concentration Monitoring
Power: 440/480V ~ 3 Phase ~60Hz
Machine dimensions: 38.1″ x 60.1″ x 79.1″
Light Tower
