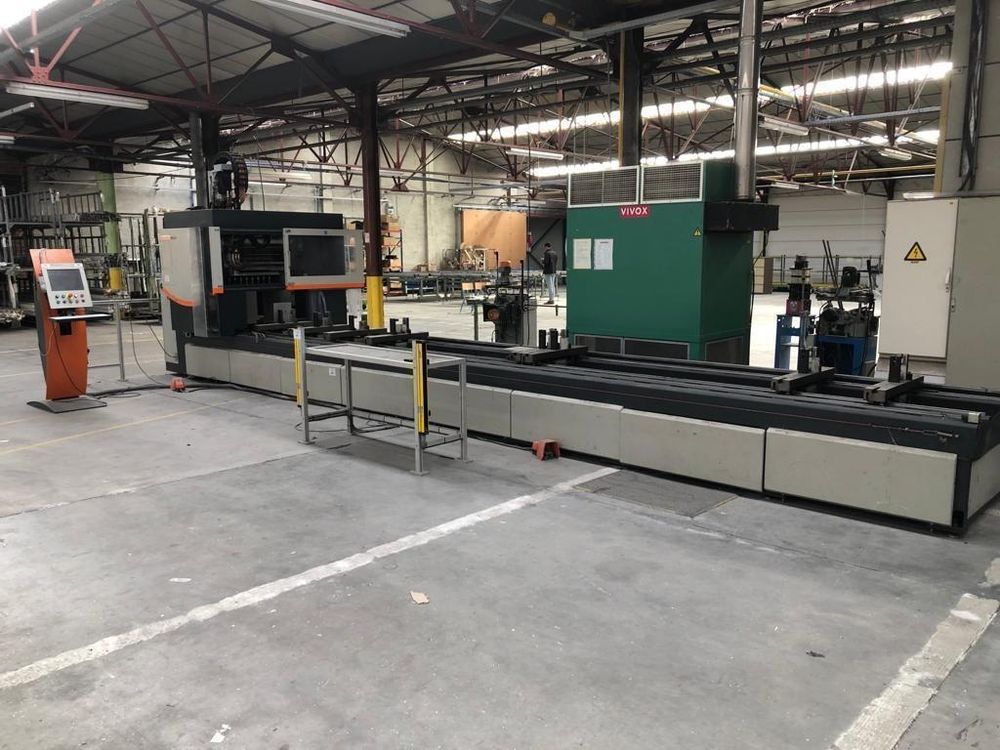

Elumatec SBZ 140 24,000 rpm

Longitudinal travel X-axis: 7900 mm
Crosstravel Y-axis: 850 mm
Travel Z-axis (Height): 650 mm
Power on spindle: 6 kW
Admission in milling head spindle (ISO): HSK-63 F
Max speed range: 24,000 rpm
Length: 11,400 mm
Depth: 3350 mm
Height: 2950 mm
Weight: 4.9 ton

4-axis industrial profile machining center
Can edit up to 5 sides of a profile
Machining options: drilling, machining, tapping
Maximum machining length with profile head machining: 7480 mm
Maximum machining length without profile head machining: 7600 mm
Axis-controlled milling head can machine profile continuously at any position between 0° and 180° with all available tools
8 tools
8 movable clamps
Barcode reader
Implementation software new control 2025 Version: 9.1.1.10 / 2.31e
Automatic profile measuring system
2 extra clips complete material
Remote control console for SBZ 140
8x adjustable clamping material
Automatic detection of the clamp position
Automatic positioning of terminal equipment
Microdosing system (tool lubrication)
Safety cover
Safety light
Central chip removal
2x pneumatic zero attack
Separate clamping system (shuttle)
Angle: +90° & -90°
