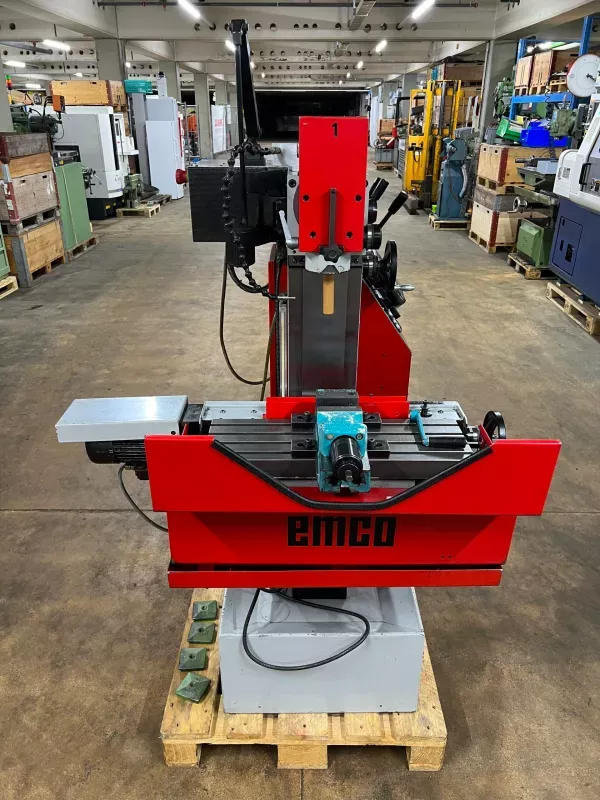

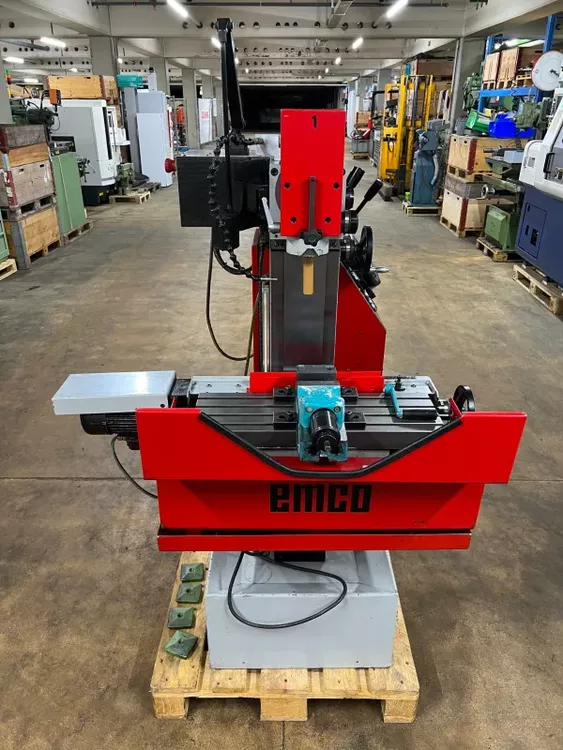

Emco FB3 Universal Milling Machine 2800 rpm

Axis Travel X 300 mm
Axis Travel Y 200 mm
Axis Travel Z 350 mm
Clamping Surface Rigid Angle Table 600 x 200 mm
T-Slots 4 x 12 x 21 mm
Groove Spacing 45 mm
Max Workpiece Weight 80 kg
Engine Power 1.4 kW
Engine Rated Speed 2800 rpm
Torque 98 Nm
Feed Force 1600 N
Feed Speed Range 50–550 rpm
Rapid Traverse 1200 rpm
Tool Holder SK30
Quill Stroke 45 mm
Head Swivel Range ±90°
Mechanical Speed Levels 8
Spindle Speed Range 80–2200 rpm
Handwheel Division X/Y/Z 0.01 mm
Handwheel Division Quill 0.5 mm
Machine Length 1150 mm
Machine Width 1410 mm
Machine Height 1550 mm
Machine Weight Approx. 500 kg

EMCO milling machine
Gressel vice
Lista drawer unit
Collet set
Tool holder set
Complete operational documentation
