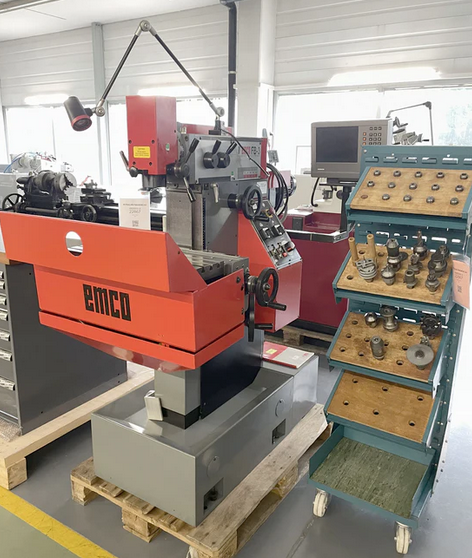

Emco FB-3 2200 rpm

Machine type: Universal milling machine
Table length: 600 mm
Table width: 180 mm
Number of T-slots: 4
Longitudinal travel (X-axis): 300 mm
Transverse travel (Y-axis): 200 mm
Vertical travel (Z-axis): 350 mm
Spindle stroke: 45 mm
Maximum table load: 50 kg
Spindle taper: SK30
Number of spindle speeds: 6
Spindle speed range: 80–2200 rpm
Vertical head swivel range: ±90°
Rapid traverse: 12 m/min
Power supply: 3 × 380 V / 50 Hz
Spindle motor power: 1.1 / 1.4 kW
Machine weight: approx. 500 kg
Overall length: 1500 mm
Overall width: 1150 mm
Overall height: 1550 mm

Features / equipment
3-axis digital readout
Digital readout manufacturer: HEIDENHAIN
Coolant system
Boring head
Collet holder
Set of collets
Set of toolholders
Drill chuck
Tool storage
Work lamp
